Question: X = 58 I need the asm code very quick Q.1) (50 point) Assume that the control of a bottle filling system is performed with
X = 58
I need the asm code very quick

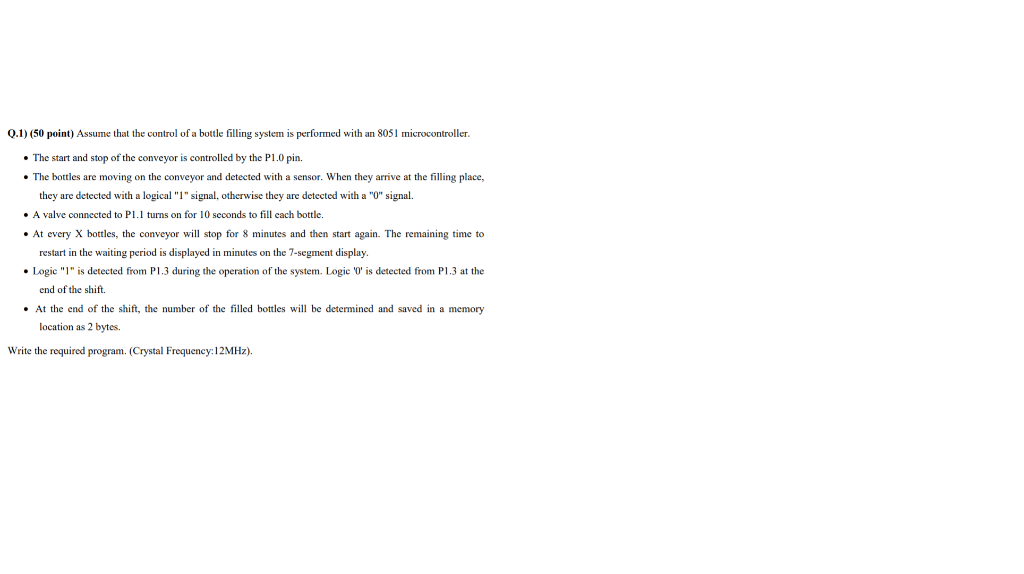

Q.1) (50 point) Assume that the control of a bottle filling system is performed with an 8051 microcontroller. . The start and stop of the conveyor is controlled by the P1.0 pin. The bottles are moving on the conveyor and detected with a sensor. When they arrive at the filling place, they are detected with a logical "1" signal, otherwise they are detected with a "0" signal. A valve connected to Pl.1 turns on for 10 seconds to fill cach bottle. At every X bottles, the conveyor will stop for 8 minutes and then start again. The remaining time to restart in the waiting period is displayed in minutes on the 7-segment display. Logic "1" is detected from P1.3 during the operation of the system. Logie O' is detected from P1.3 at the end of the shift. . At the end of the shift, the number of the filled bottles will be determined and saved in a memory location as 2 bytes. Write the required program. (Crystal Frequency:12MHz). Q.1) (50 point) Assume that the control of a bottle filling system is performed with an 8051 microcontroller. . The start and stop of the conveyor is controlled by the P1.0 pin. The bottles are moving on the conveyor and detected with a sensor. When they arrive at the filling place, they are detected with a logical "1" signal, otherwise they are detected with a "0" signal. A valve connected to Pl.1 turns on for 10 seconds to fill cach bottle. At every X bottles, the conveyor will stop for 8 minutes and then start again. The remaining time to restart in the waiting period is displayed in minutes on the 7-segment display. Logic "1" is detected from P1.3 during the operation of the system. Logie O' is detected from P1.3 at the end of the shift. . At the end of the shift, the number of the filled bottles will be determined and saved in a memory location as 2 bytes. Write the required program. (Crystal Frequency:12MHz)
