XML/XSD - PLEASE HELP!!!

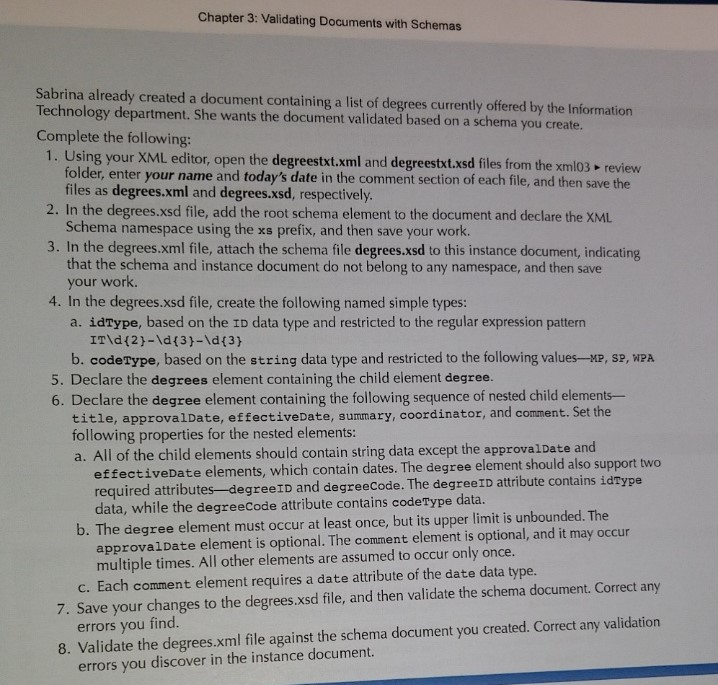

PLEASE DO QUESTIONS 1-8:

** Here is the degrees.xml document: **

Information Technology-Mobile Programmer

2019-01-12

2019-09-01

This two-year program meets the specific skill and knowledge requirements

of technical and professional jobs within the information technology field for

an entry-level mobile programmer working in a small to medium size

organization. Training blends general educational development with required

IT technical skills. Emphasis is in mobile web and application development.

Janis Wu

Janis Wu contacted regards heads up on approval. Official paperwork is being sent

Janis Wu assigned as coordinator

Application draft submitted

Information Technology-Software Programmer

2017-12-12

2018-09-01

This two-year program meets the specific skill and knowledge requirements of technical and

professional jobs within the information technology field for an entry-level software programmer.

Training meets the educational needs for most segments of the IT field, which primarily utilize

small to midsize computers in conjunction with web and server applications. Emphasis is in LAMP and

object-oriented languages.

Taylor Wapner

Updates are being sent for approval

Taylor Wapner assigned as coordinator

Phil Bean contacted regards heads up on approval. Official paperwork is being sent

Phil Bean assigned as coordinator

Application draft submitted

Information Technology-Web Programmer/Analyst

2017-12-12

2018-09-01

The Web Programmer/Analyst program meets the specific skill and knowledge requirements

of technical and professional jobs within the information technology field for an entry-level Web

analyst/programmer. It is designed to meet entry-level educational needs of most segments of

the IT field which utilize a variety of computers. Training blends general educational development

and required IT technical skills. Graduates are prepared for entry-level web developer jobs in

government, insurance, manufacturing, service, software development, wholesale and retail

sales, utilities, banking, and accounting.

Christiana Sanchez

Christiana Sanchez assigned as coordinator

Taylor Wapner contact regards heads up on approval. Official paperwork is being sent

Taylor Wapner assigned as coordinator

Application draft submitted

------------------------------------------------------------------------------------------------------------------------

Here is the degrees.xsd document (it is blank):

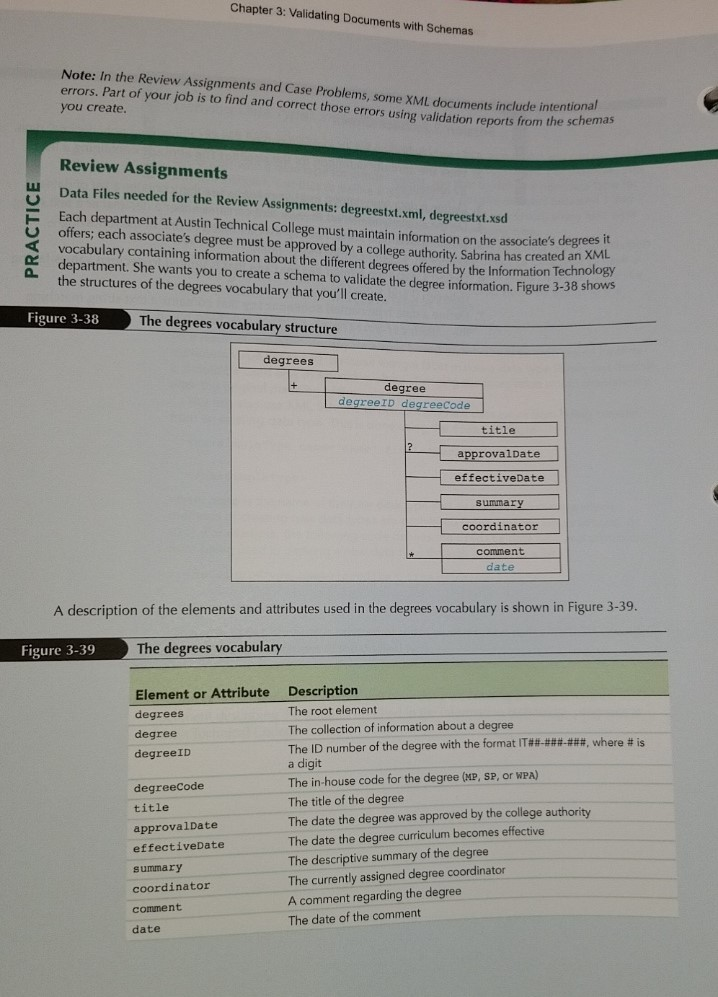

Chapter 3: Validating Documents with Schemas Note: In the Review Assignments and Case Problems, some XML documents include intentionar errors. Part of your job is to find and correct those errors using validation reports from th you create Review Assignments Data Files needed for the Review Assignments: degreestxt.xml, degreestxt.xsd u Each department at Austin Technical College must maintain information on the associate's degrees it offers; each associate's degree must be approved by a college authority. Sabrina has createda vocabulary containing information about the different degrees offeredby the Information Technology department. She wants you to create a schema to validate the degree information. Figure 3-38 shows the structures of the degrees vocabulary that you'll create. 0 Figure 3-38 The degrees vocabulary structure degrees degree degreeID degreecode title approvalDate effectiveDate summary coordinator comment date A description of the elements and attributes used in the degrees vocabulary is shown in Figure 3-39 Figure 3-39 The degrees vocabulary Description The root element The collection of information about a degree The ID number of the degree with the format IT########, where # is a digit The in-house code for the degree (MP, SP, or wPA) The title of the degree The date the degree was approved by the college authority The date the degree curriculum becomes effective The descriptive summary of the degree The currently assigned degree coordinator A comment regarding the degree The date of the comment Element or Attribute degrees degree degreeID degreeCode title approvalDate effectiveDate summary coordinator comment date Chapter 3: Validating Documents with Schemas Note: In the Review Assignments and Case Problems, some XML documents include intentionar errors. Part of your job is to find and correct those errors using validation reports from th you create Review Assignments Data Files needed for the Review Assignments: degreestxt.xml, degreestxt.xsd u Each department at Austin Technical College must maintain information on the associate's degrees it offers; each associate's degree must be approved by a college authority. Sabrina has createda vocabulary containing information about the different degrees offeredby the Information Technology department. She wants you to create a schema to validate the degree information. Figure 3-38 shows the structures of the degrees vocabulary that you'll create. 0 Figure 3-38 The degrees vocabulary structure degrees degree degreeID degreecode title approvalDate effectiveDate summary coordinator comment date A description of the elements and attributes used in the degrees vocabulary is shown in Figure 3-39 Figure 3-39 The degrees vocabulary Description The root element The collection of information about a degree The ID number of the degree with the format IT########, where # is a digit The in-house code for the degree (MP, SP, or wPA) The title of the degree The date the degree was approved by the college authority The date the degree curriculum becomes effective The descriptive summary of the degree The currently assigned degree coordinator A comment regarding the degree The date of the comment Element or Attribute degrees degree degreeID degreeCode title approvalDate effectiveDate summary coordinator comment date
