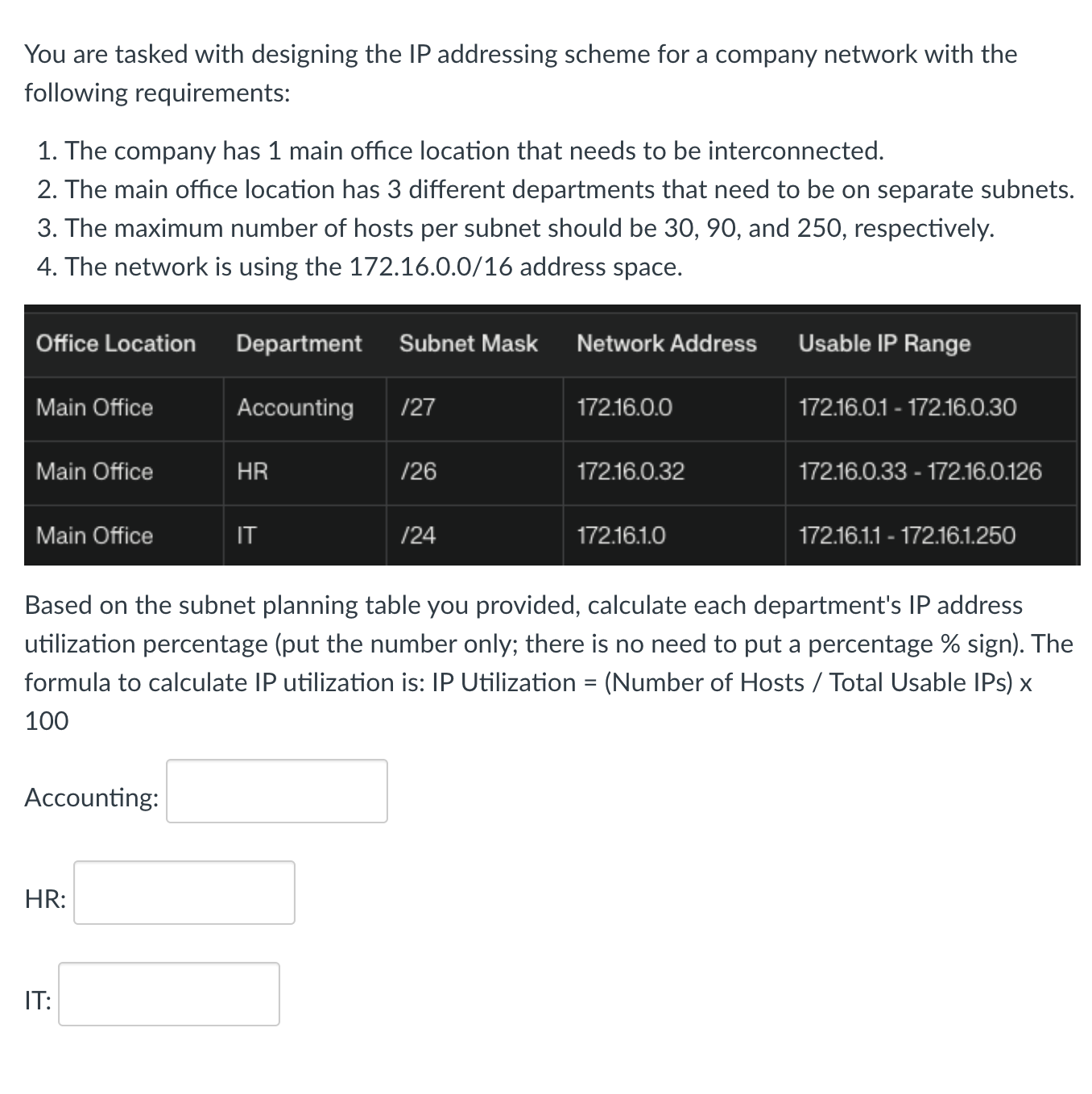

You are tasked with designing the IP addressing scheme for a company network with the

following requirements:

The company has $1$ main office location that needs to be interconnected.

The main office location has $3$ different departments that need to be on separate subnets.

The maximum number of hosts per subnet should be $30,90,$ and $250,$ respectively.

The network is using the $172\mathrm{.}16.\frac{0\mathrm{.}0}{16}$ address space.

Based on the subnet planning table you provided, calculate each department's IP address

utilization percentage $($put the number only; there is no need to put a percentage $\%$ sign$).$ The

formula to calculate IP utilization is: IP Utilization $=($Number of Hosts $/$ Total Usable IPs$)x$

$100$

Accounting:

HR:

IT:
