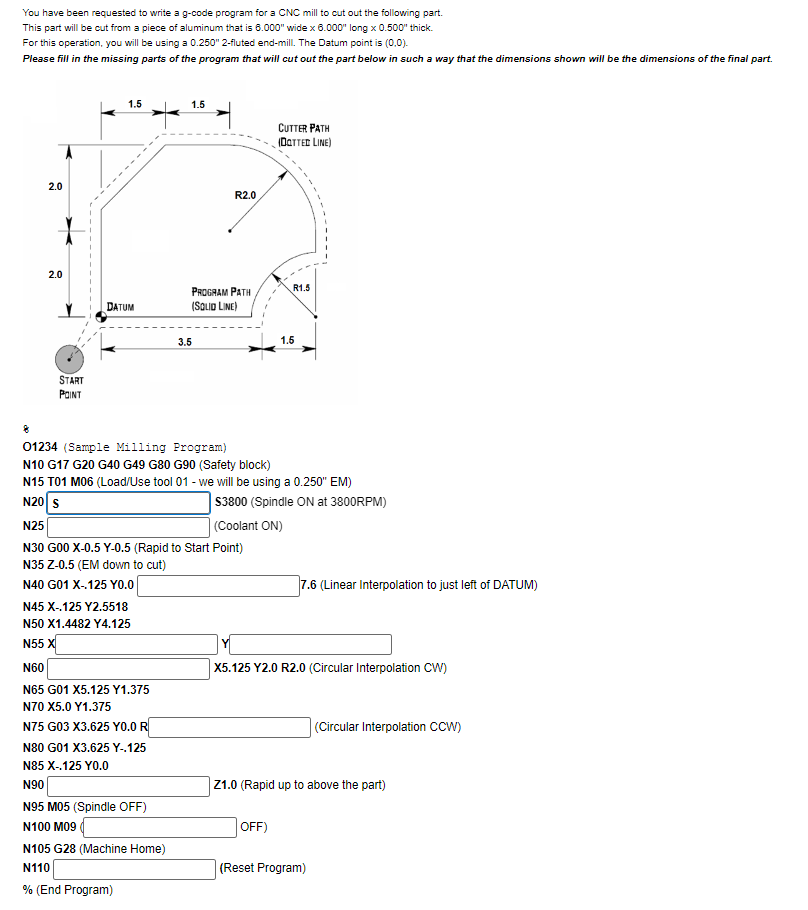

You have been requested to write a g$-$code program for a $CNC$ mill to cut out the following part.

This part will be cut from a piece of aluminum that is ${6\mathrm{.}000}^{\text{'}\text{'}}$ wide ${6\mathrm{.}000}^{\text{'}\text{'}}$ long ${0\mathrm{.}500}^{\text{'}\text{'}}$ thick.

For this operation, you will be using a $0\mathrm{.}250"2-$fluted end$-$mill. The Datum point is $(0,0).$

$8$

$01234($Sample Milling Program$)$

N$10$ G$17$ G$20$ G$40$ G$49$ G$80$ G$90($Safety block$)$

N$15$ T$01$ M$06($Load$/$Use tool $01-$ we will be using a $0\mathrm{.}250"$ EM$)$

N$20[$

S$3800($Spindle ON at $3800$RPM$)$

N$25$

$($Coolant ON$)$

N$30$ G$00$ X$-0\mathrm{.}5$ Y$-0\mathrm{.}5($Rapid to Start Point$)$

N$35$ Z$-0\mathrm{.}5($EM down to cut$)$

N$40$ G$01$ X$-.125$ Y$0\mathrm{.}0$

$7\mathrm{.}6($Linear Interpolation to just left of DATUM$)$

N$45$ X$-\mathrm{.}125$ Y$2\mathrm{.}5518$

$N50x1\mathrm{.}4482$ Y $4\mathrm{.}125$

N$55$ X

Y

N$60$

X$5\mathrm{.}125$ Y$2\mathrm{.}0$ R$2\mathrm{.}0($Circular Interpolation CW$)$

N$65$ G$01$ X$5\mathrm{.}125$ Y$1\mathrm{.}375$

N$70$ X$5\mathrm{.}0$ Y$1\mathrm{.}375$

$N75G03x3\mathrm{.}625Y0\mathrm{.}0R$

$($Circular Interpolation CCW$)$

N$80$ G$01$ X$3\mathrm{.}625$ Y$-.125$

N$85$ X$-\mathrm{.}125$ Y$0\mathrm{.}0$

N$90$

Z$1\mathrm{.}0($Rapid up to above the part$)$

N$95$ M$05($Spindle OFF$)$

N$100$ M$09$

JOFF$)$

N$105$ G$28($Machine Home$)$

N$110$

$($Reset Program$)$

$\%($End Program$)$
