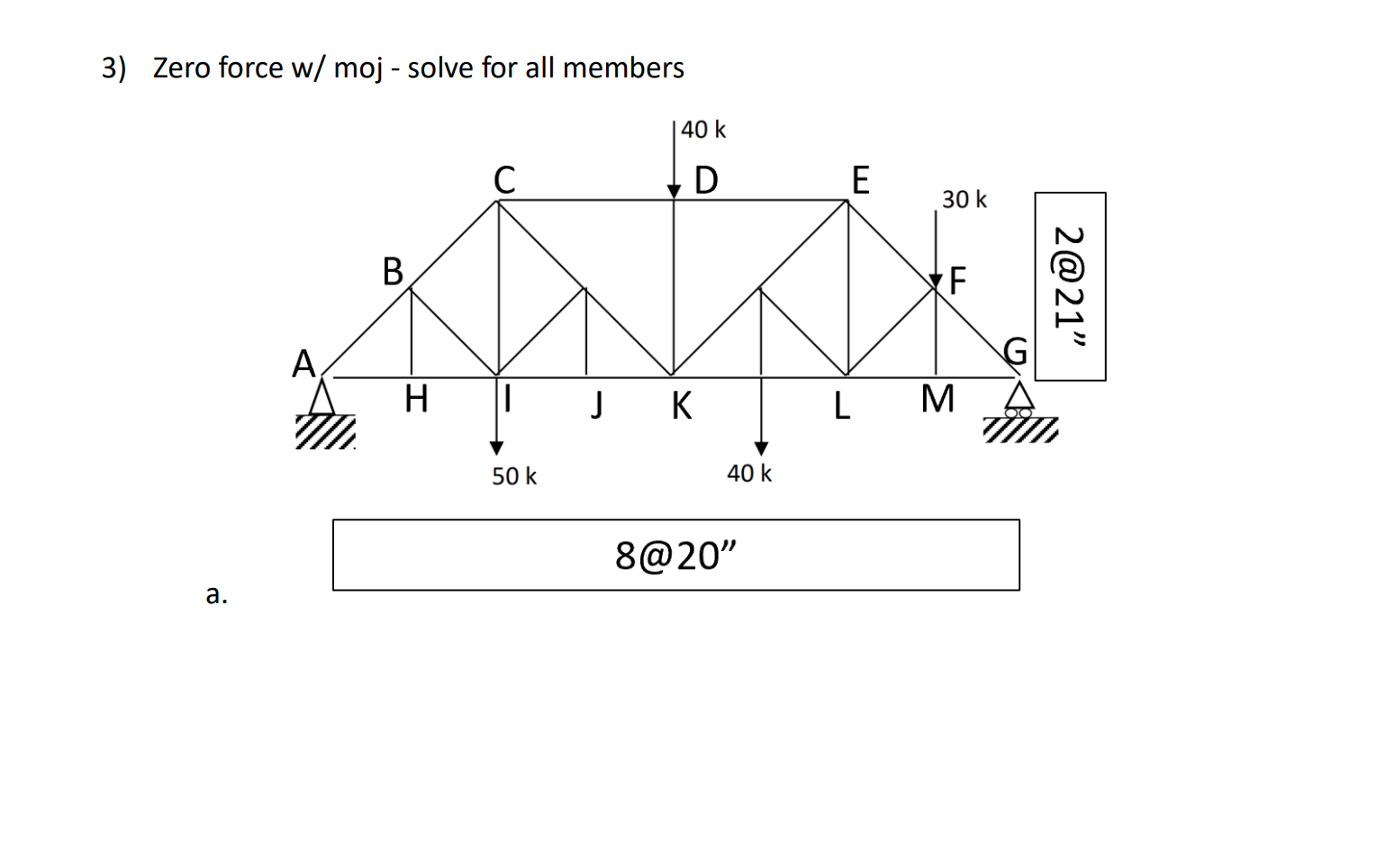

Question: Zero force w / moj - solve for all members a . Solve for all force members using methodof joints.

Zero force w/ moj - solve for all members
a.Solve for all force members using methodof joints.
Zero force w / moj - solve for all members a .

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
