Question: 01. Design the sequential circuit for Idle-stop system( with state diagram and state table) 02. special function = In order to eliminate the restraint of

01. Design the sequential circuit for Idle-stop system( with state diagram

and state table) 02. special function = In order to eliminate the

restraint of pressing down on the pedal when thevengine is started and

01. Design the sequential circuit for Idle-stop system( with state diagram and state table)

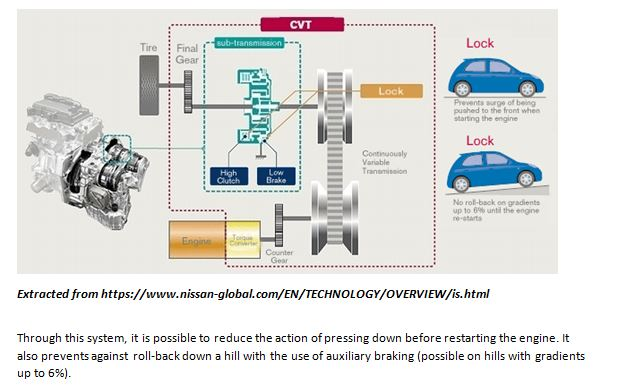

02. special function = In order to eliminate the restraint of pressing down on the pedal when thevengine is started and ensure the car doesnot roll back when restarting on a hill, a lock system is used on the CVT transmission.

Implement the special functional logic into your design

03.Design Moore machine and Mealy machine for this system

04.Implement your system into FPGA development board

Please provide answers ASAP within today.

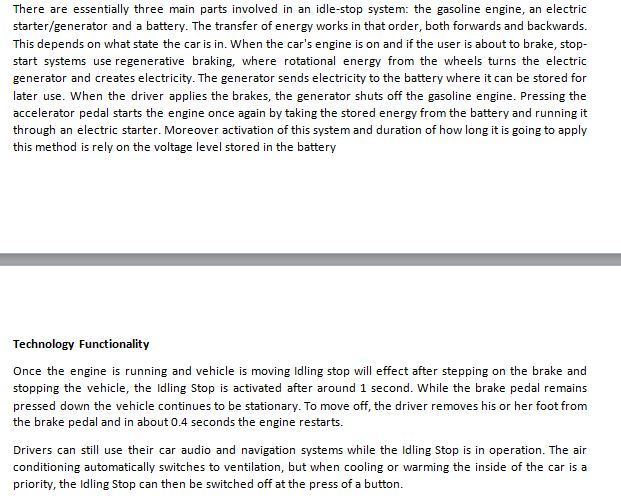

Idle-stop system Modern vehicles are designed with idle-stop mechanism to make vehicles more fuel efficient and environment friendly. In the idle state, the engine is in the running mode but still the vehicle will not be moving. The gasoline engine automatically shuts off when the vehicle is in the idle-stop state. In the idle stop state the engine will be stopped and all the other functions such as lights, A/C, etc. will be operated by the battery. The flow of how the idle-stop system work is given in the following diagram. Model of Electronic Controi System for idie StartuStop System Temperature Sensor Engine Turn Off Engine Energy Integrated Starter Generator Start Engine Energy Battery Battery Sensor ECU Brake Pedal Positiorn Environmental Data Sensors Extracted from https://cecas.clemson.edu/cvel/auto/systems/autostart-stop.html Idle-stop system Modern vehicles are designed with idle-stop mechanism to make vehicles more fuel efficient and environment friendly. In the idle state, the engine is in the running mode but still the vehicle will not be moving. The gasoline engine automatically shuts off when the vehicle is in the idle-stop state. In the idle stop state the engine will be stopped and all the other functions such as lights, A/C, etc. will be operated by the battery. The flow of how the idle-stop system work is given in the following diagram. Model of Electronic Controi System for idie StartuStop System Temperature Sensor Engine Turn Off Engine Energy Integrated Starter Generator Start Engine Energy Battery Battery Sensor ECU Brake Pedal Positiorn Environmental Data Sensors Extracted from https://cecas.clemson.edu/cvel/auto/systems/autostart-stop.html
