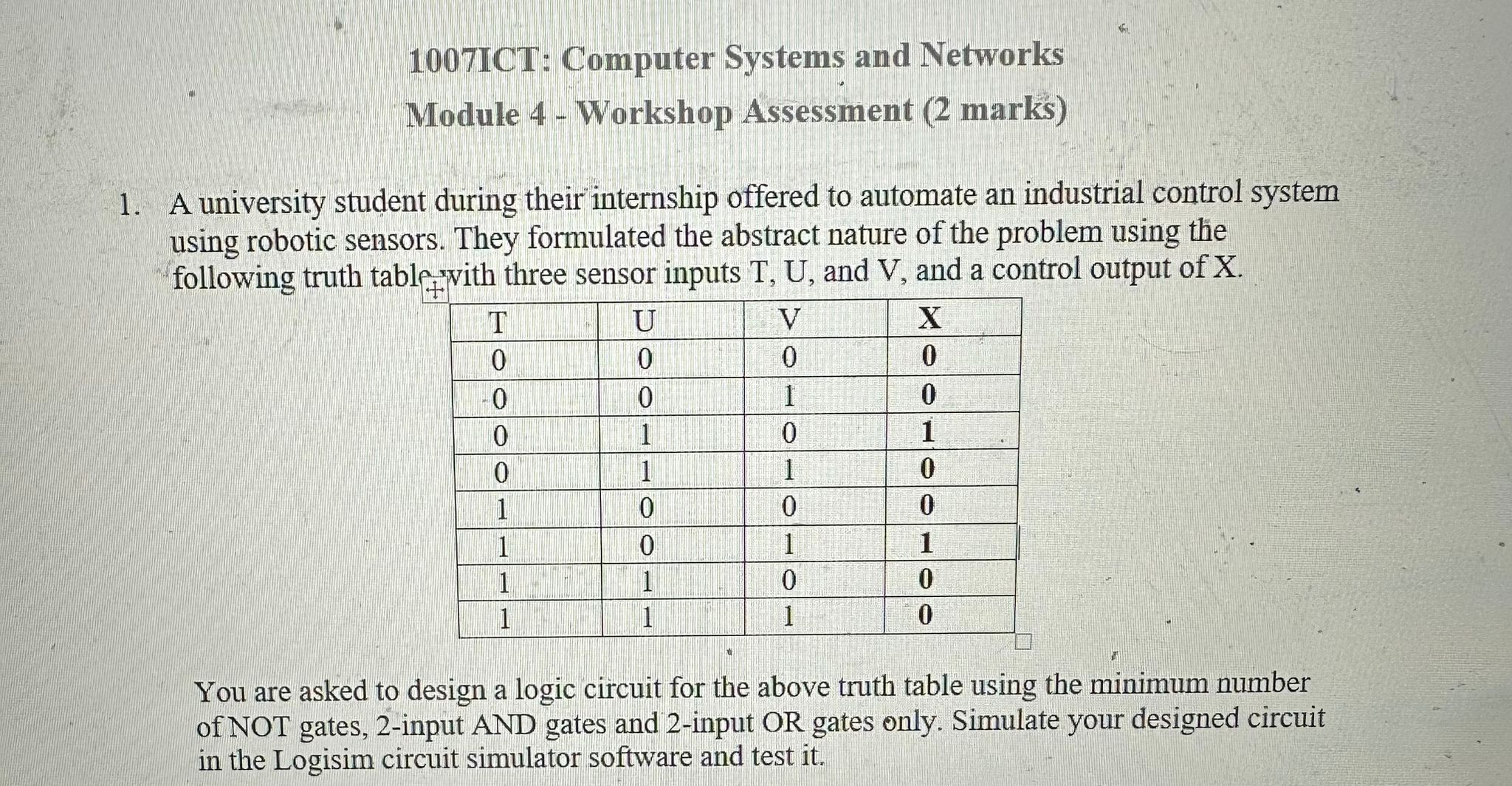

$1007$ICT: Computer Systems and Networks

Module $4-$ Workshop Assessment $(2$ marks$)$

A university student during their internship offered to automate an industrial control system

using robotic sensors$.$ They formulated the abstract nature of the problem using the

following truth table ${?}_{+}$with three sensor inputs $T,U,$ and $V,$ and a control output of $x.$

You are asked to design a logic circuit for the above truth table using the minimum number

of NOT gates, $2-$input AND gates and $2-$input OR gates only. Simulate your designed circuit

in the Logisim circuit simulator software and test it$.$
