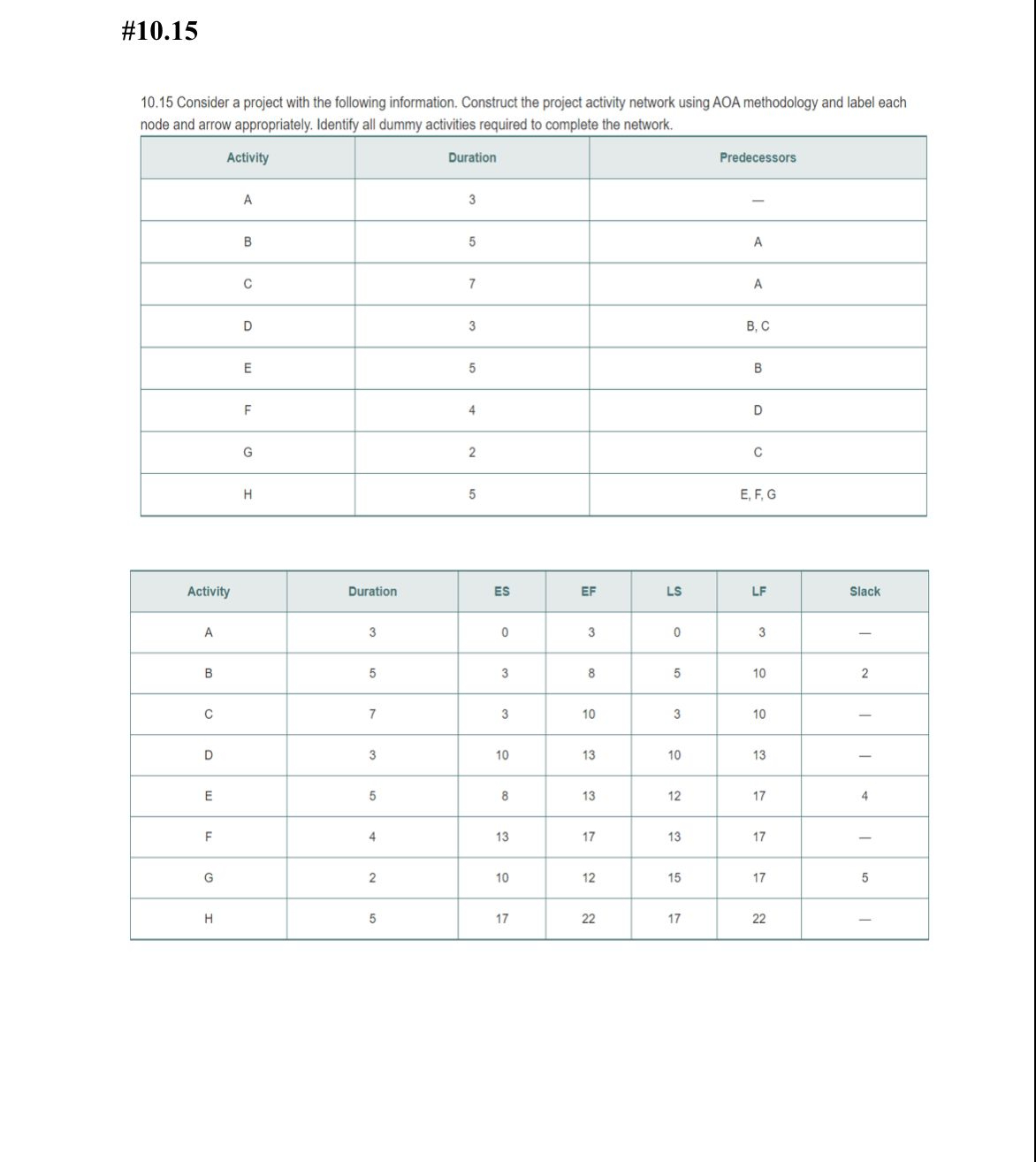

#$10\mathrm{.}15$

$10\mathrm{.}15$ Consider a project with the following information. Construct the project activity network using AOA methodology and label each node and arrow appropriately. Identify all dummy activities required to complete the network.

$\backslash$table$[[$Activity$,$Duration,Predecessors$],[$A$,3,-],[$B$,5,$A$],[$C$,7,$A$],[$D$,3,$B$,$ C$],[$E$,5,$B$],[$F$,4,$D$],[$G$,2,$C$],[$H$,5,$E$,$ F$,$ G$]]$

$\backslash$table$[[$Activity$,$Duration,ES$,$EF$,$LS$,$LF$,$Slack$],[$A$,3,0,3,0,3,-],[$B$,5,3,8,5,10,2],[$C$,7,3,10,3,10,-],[$D$,3,10,13,10,13,-],[$E$,5,8,13,12,17,4],[$F$,4,13,17,13,17,-],[$G$,2,10,12,15,17,5],[$H$,5,17,22,17,22,-]]$
