Question: Project Scheduling Networks, Duration Estimation, and Critical Path 9.20 Consider a project with the following information: Predecessors Activity A Duration 3 5 7 B A

Project Scheduling Networks, Duration Estimation, and Critical Path

Project Scheduling Networks, Duration Estimation,

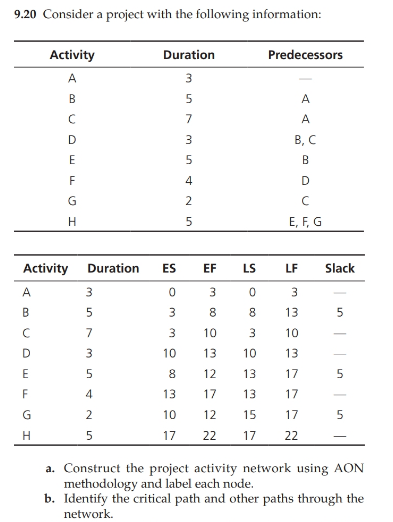

9.20 Consider a project with the following information: Predecessors Activity A Duration 3 5 7 B A A D 3 B, C B E 5 D F G 4 2 H 5 E, F, G Activity Duration ES EF LS LF Slack A 3 0 0 3 B 5 3 8 8 13 5 C 7 3 10 3 10 D 3 10 13 10 13 E 5 8 12 13 17 5 mm F 4 13 17 13 17 G 2 10 12 15 17 5 H 5 17 22 17 22 a. Construct the project activity network using AON methodology and label each node. b. Identify the critical path and other paths through the network

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
