Question: 1 0 - 4 7 . Draw the influence line for the reaction at C . Plot the numerical values every 5 ft . E

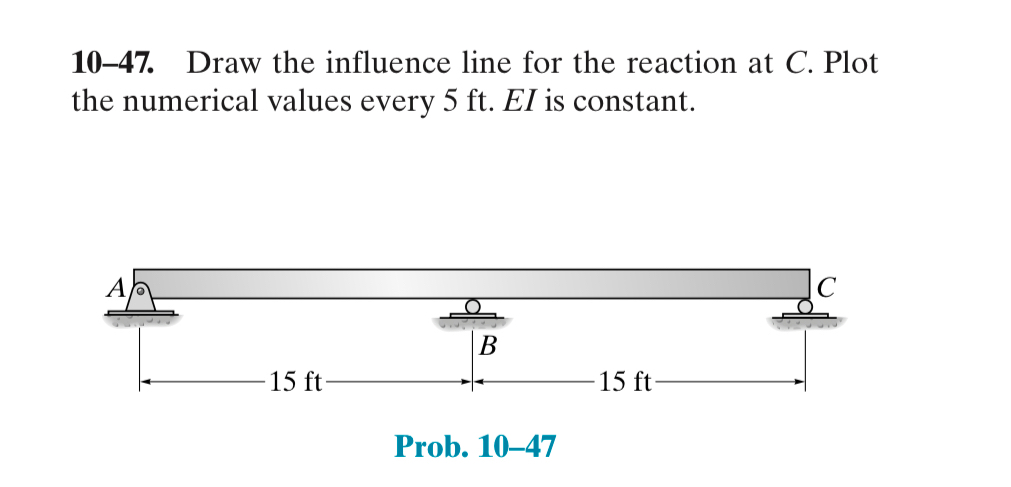

10-47. Draw the influence line for the reaction at C. Plot the numerical values every 5 ft .EI is constant.
1 0 - 4 7 . Draw the influence line for the

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock

Students Have Also Explored These Related Civil Engineering Questions!

Q:

Draw the influence line for the reaction at C. Plot numerical values at the peaks. Assume A is a pin and Band Care rollers. EI is constant. Ic IB 6 m 6 m

Q:

Draw the influence line for the shear at C. Plot numerical values every 1.5 m. Assume A is fixed and the support at Bis a roller. EI is constant. SA B 3 m 3 m

Q:

Draw the influence line for the reaction at C. Plot the numerical values every 5 ft. EI is constant. B -15 ft- -15 ft-

Q:

1 0 - 4 7 . Draw the influence line for the reaction at C . Plot the numerical values every 5 f t . EI is constant.

Q:

1 ) Draw the influence line for the vertical reaction at A . Indicate the values of the influence line at each marked point along the beam. Draw discontinuity lines at each marked point along the...

Q:

A ) Draw the influence line for the moment at C . Indicate the values of the influence line at each marked point along the beam. Draw discontinuity lines at each marked point along the beam. B ) Draw...

Q:

6 - 5 . Draw the influence lines for ( a ) the vertical reaction at A , ( b ) the moment at A , and ( c ) the Part A Draw the influence line for the vertical reaction at A . Indicate the values of...

Q:

Draw the influence line for the reaction at point \(A\). Plot numerical values every \(5 \mathrm{ft}\). Assume the support at \(A\) is a roller and \(C\) is fixed. \(E I\) is constant. 10 ft B 10 ft-...

Q:

EXAMPLE 1 0 . 1 1 Draw the influence line for the shear at D for the beam in Fig. 1 0 - 2 5 a . E I is constant. Plot numerical values every 9 ft . Fig. 1 0 - 2 5

Q:

Draw the influence line for the vertical reaction at B. Plot numerical values at the peaks. Assume A is fixed and the support at B is a roller. EI is constant. 1 3 m 3 m
