Question: 1 1 . 3 . 3 Given the RLC network in Fig. P 1 1 . 3 . 3 , find the value of Q

11.3.3 Given the RLC network in Fig. P11.3.3, find the value of Q and the output voltage, v0(t), at the resonant frequency.

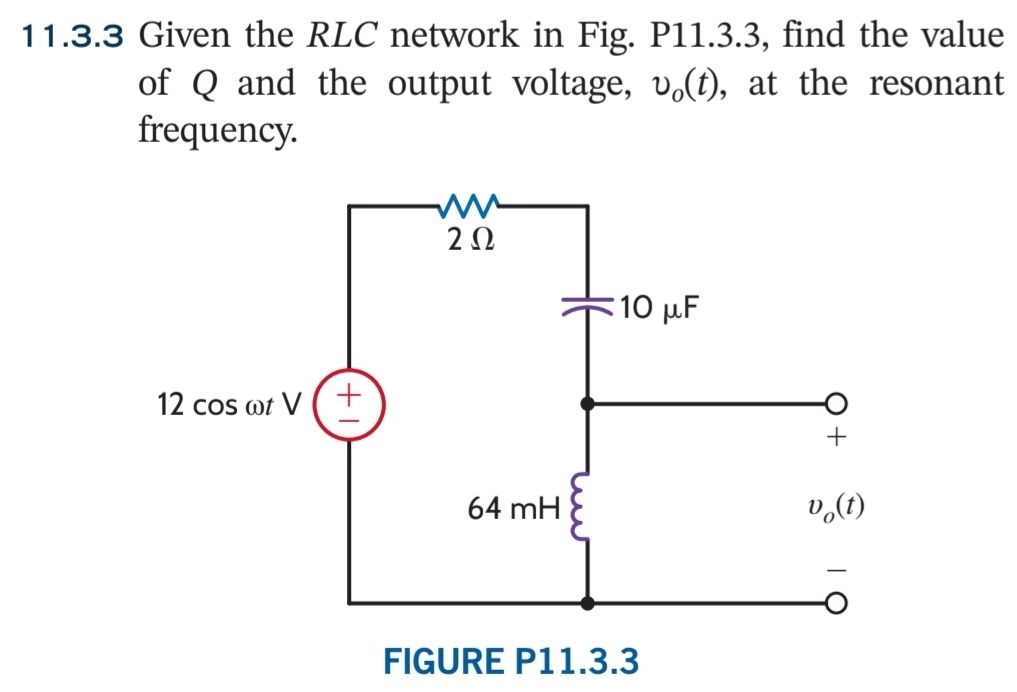

FIGURE P11.3.3
1 1 . 3 . 3 Given the RLC network in Fig. P 1 1 .

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
