Question: 1 . ( 2 0 Points ) Write a complete set of NODE equations for analyzing the following circuit, using the given labels. Do not

1 . (20

Points

)

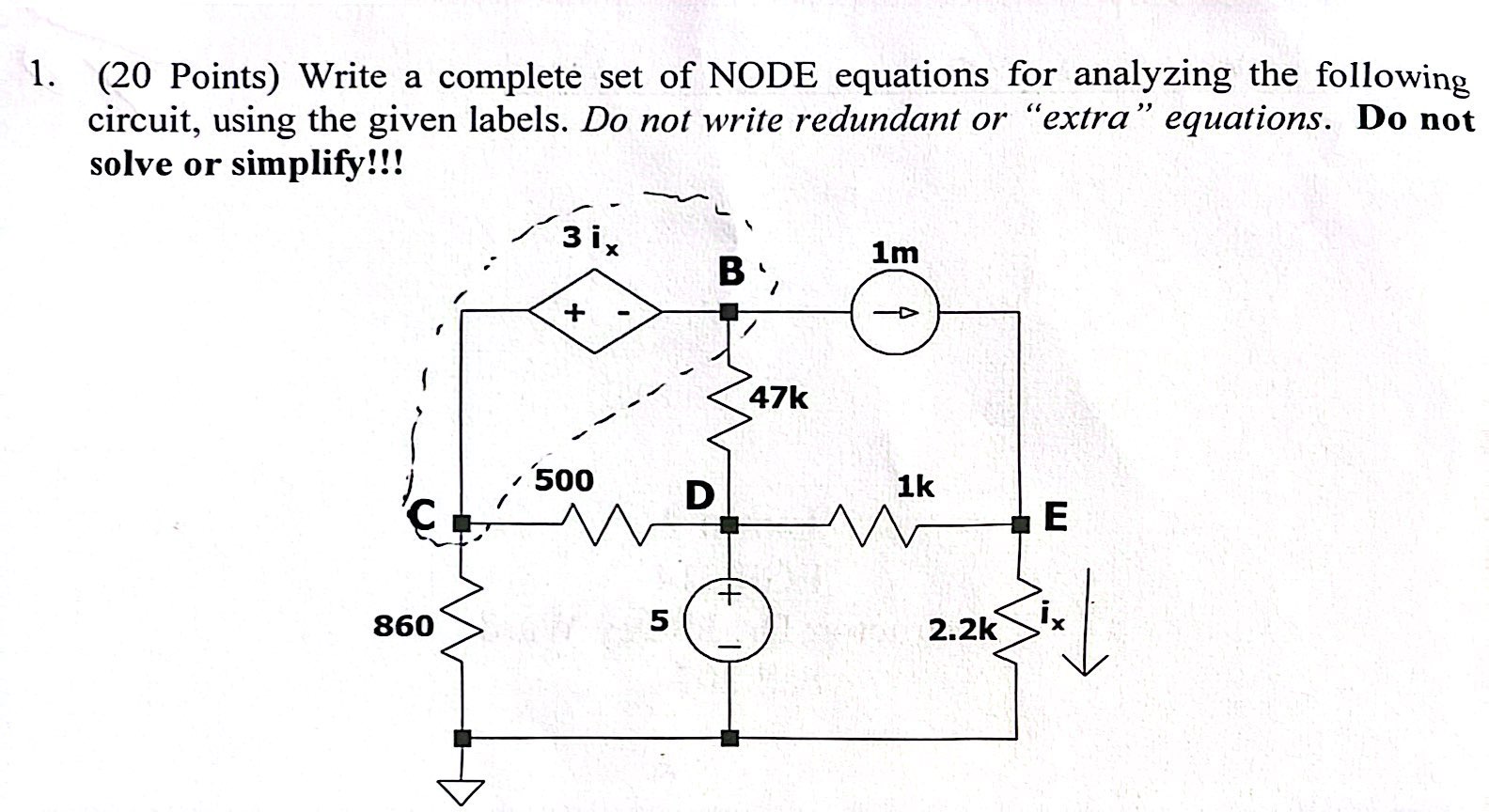

Write a complete set of NODE equations for analyzing the following circuit, using the given labels. Do not write redundant or "extra" equations. Do not solve or simplify!!!

1 . ( 2 0 Points ) Write a complete set of NODE
