Question: ( 1 ) ( 2 0 pts ) Find the current I and the voltage V for each network below: R 1 = 1 3

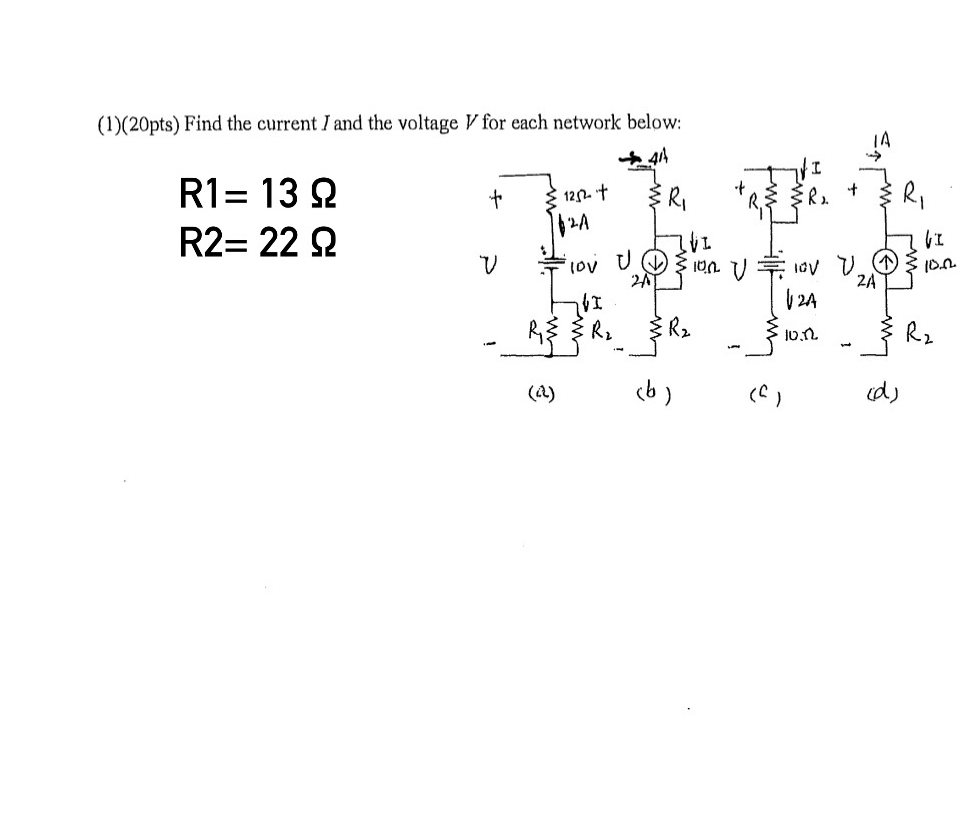

(1)(20pts) Find the current I and the voltage V for each network below:
R1=13
R2=22
( 1 ) ( 2 0 pts ) Find the current I and the

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
