Question: 1 2 - 4 . 4 . The compound wheel shown in Fig. P - 1 2 - 4 . 4 rolls without slipping. At

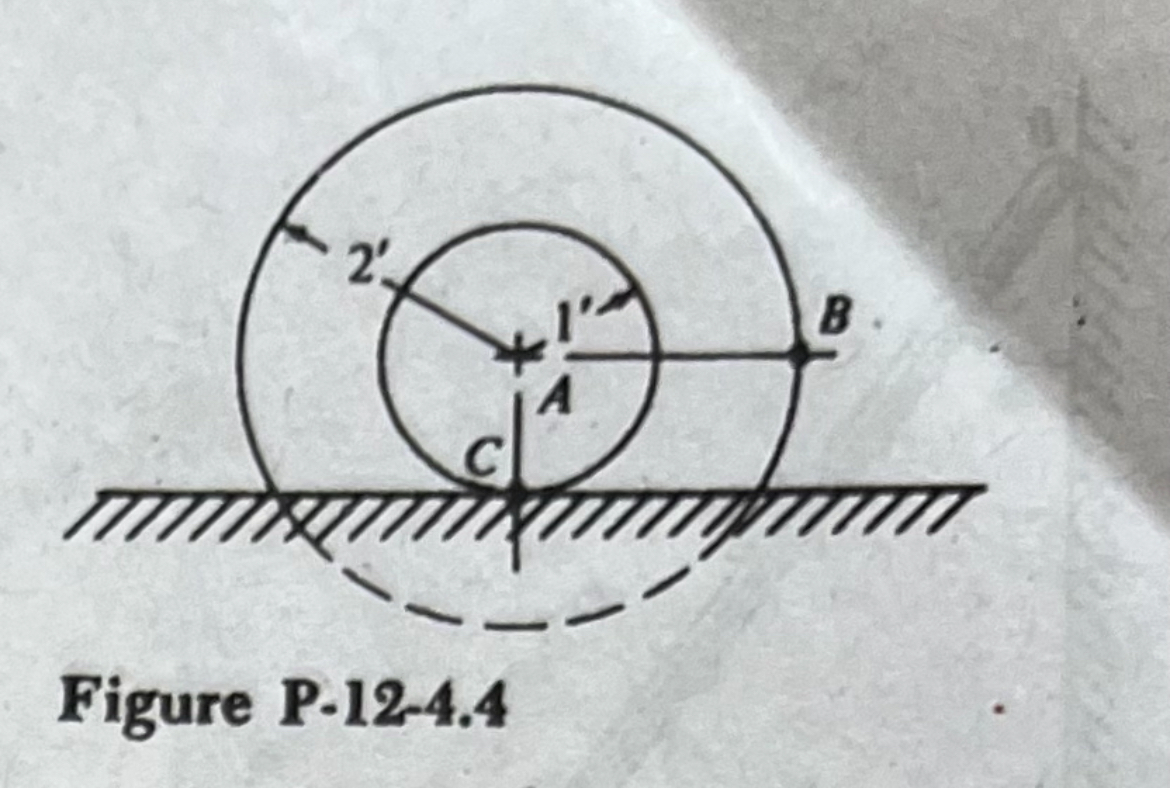

12-4.4. The compound wheel shown in Fig. P-12-4.4 rolls without slipping. At the given position, the velocity of A is 6fps and the acceleration of A is 20fps^2, both directed to the right. Compute the acceleration of points B and C.
ab =65.6fps^2 ; ac =36fps^2
1 2 - 4 . 4 . The compound wheel shown in Fig. P
