Question: 1 2 - 7 . by using moment distribution Determine the moment at B , then draw the moment diagram for the beam. Assume the

12-7. by using moment distribution Determine the moment at B, then draw the moment

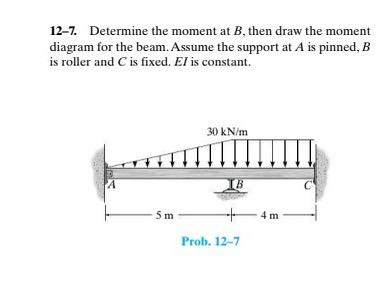

diagram for the beam. Assume the support at A is pinned, B
is roller and C is fixed. EI is constant.
Prob. 12-7
1 2 - 7 . by using moment distribution Determine

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
