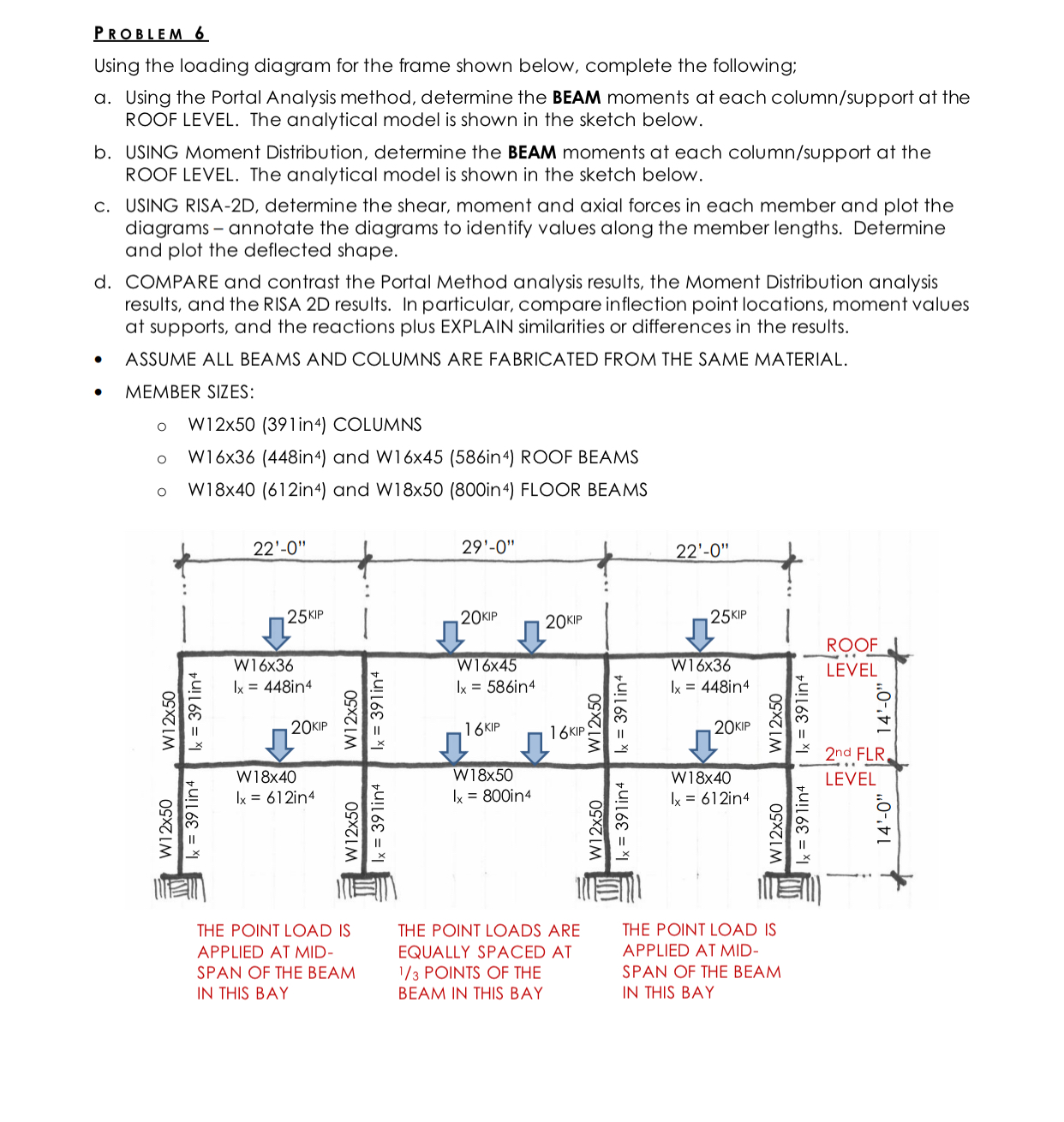

PROBLEM $6$

Using the loading diagram for the frame shown below, complete the following;

a$.$ Using the Portal Analysis method, determine the BEAM moments at each column$/$support at the ROOF LEVEL. The analytical model is shown in the sketch below.

b$.$ USING Moment Distribution, determine the BEAM moments at each column$/$support at the ROOF LEVEL. The analytical model is shown in the sketch below.

C$.$ USING RISA$-2$D$,$ determine the shear, moment and axial forces in each member and plot the diagrams $-$ annotate the diagrams to identify values along the member lengths. Determine and plot the deflected shape.

d$.$ COMPARE and contrast the Portal Method analysis results, the Moment Distribution analysis results, and the RISA $2$D results. In particular, compare inflection point locations, moment values at supports, and the reactions plus EXPLAIN similarities or differences in the results.

ASSUME ALL BEAMS AND COLUMNS ARE FABRICATED FROM THE SAME MATERIAL.

MEMBER SIZES:

W$12$x$50(391$ in $4)$ COLUMNS
