Question: ( 1 2 mathrm { kN } / mathrm { m } ) [ 4 ] Problem Statement: The shaft is

\(12\mathrm{kN}/\mathrm{m}\)

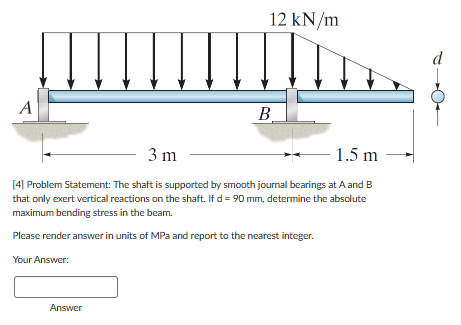

[4] Problem Statement: The shaft is supported by smooth journal bearings at \( A \) and \( B \) that only exert vertical reactions on the shaft. If \( d=90\mathrm{~mm}\), determine the absolute maximum bending stress in the beam.
Please render answer in units of MPa and report to the nearest integer.
Your Answer:
\ ( 1 2 \ mathrm { kN } / \ mathrm { m } \ ) [ 4

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
