Question: (1) (25%) The network below represents a project being analyzed by Critical Path Methods. Activity durations are A=5, B=2, C=12, D=3, E=5, F=1, G=7, H=2,

(1) (25%) The network below represents a project

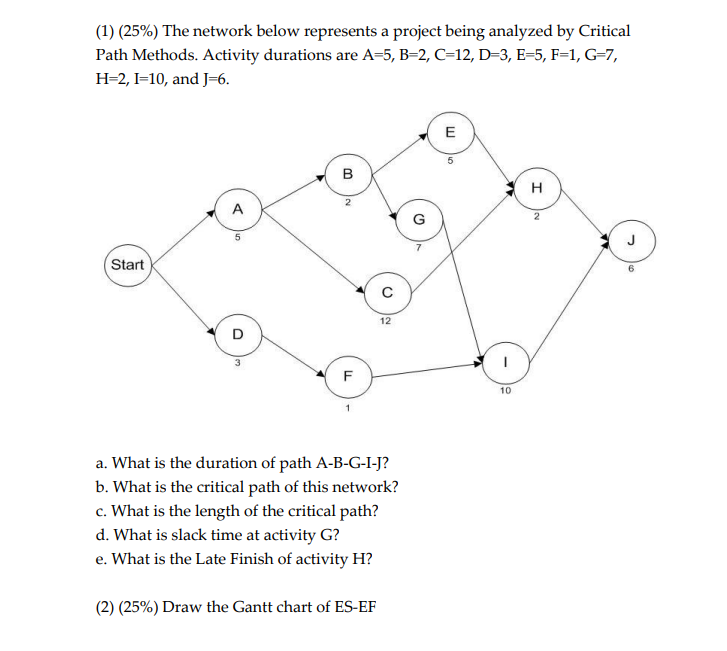

(1) (25%) The network below represents a project being analyzed by Critical Path Methods. Activity durations are A=5, B=2, C=12, D=3, E=5, F=1, G=7, H=2, I=10, and J-6. E 00 B H H A A G Start 12 D 1 10 1 a. What is the duration of path A-B-G-I-J? b. What is the critical path of this network? c. What is the length of the critical path? d. What is slack time at activity G? e. What is the Late Finish of activity H? (2) (25%) Draw the Gantt chart of ES-EF

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock

Students Have Also Explored These Related General Management Questions!

The network below represents a project being analyzed by critical path methods. Activities durations are: A=5, B=2, C=12, D=3, E=5, F=1, G=7, H=2, I=10, J=6, K=10, and L=3 what task must be on the...

The network below represents a project being analyzed by Critical Path Methods. Activity durations are A-5,B-2, C=12, D-3, E-5, F=1, G-7 H=2, 1-10, and J-6. Select "All the activities that are on the...

The network below represents a project being analyzed by the critical path method. Activity durations are A=5, B=2, C=12, D=3, E=5, F=1, G=7, H=2, I=10, and J=6. e. What is slack time at activity H?...

The network below represents a project being analyzed by Critical Path Methods. Activity durations are A=5, B=2, C=12, D=3, E=5, F=1, G=7, H=2, I=10, and J=6. a. What task must be on the critical...

Only E and F , show all calculations and formulas 1. The network below represents a project being analyzed by the critical path method. Activity durations are A=5, B=2, C=12, D=3, E=5, F=1, G=7, H=2,...

Only A-B please show all calculations so I can follow along. 1. The network below represents a project being analyzed by the critical path method. Activity durations are A=5, B=2, C=12, D=3, E=5,...

Only C and D, show all calculations and formulas 1. The network below represents a project being analyzed by the critical path method. Activity durations are A=5, B=2, C=12, D=3, E=5, F=1, G=7, H=2,...

Only G please , show all calculations and formulas 1. The network below represents a project being analyzed by the critical path method. Activity durations are A=5, B=2, C=12, D=3, E=5, F=1, G=7,...

The network below represents a project being analyzed by the critical path method. Activity durations are A=5, B=2, C=12, D=3, E=5, F=1, G=7, H=2, I=10, and J=6. E B H A Start 10 1 a. What task must...

3 Q5-The network below represents a project being analyzed by Critical Path Methods. Activity durations are A=5, B=2, C=12, D=3, E=5, F=1, G=7, H=2, I=10, and J=6. (CLO 2, PLO 3) (30) Activity...
