Question: ( 1 3 ) Links ( A B ) and ( C D ) are both length 0 . 4 m

(13)

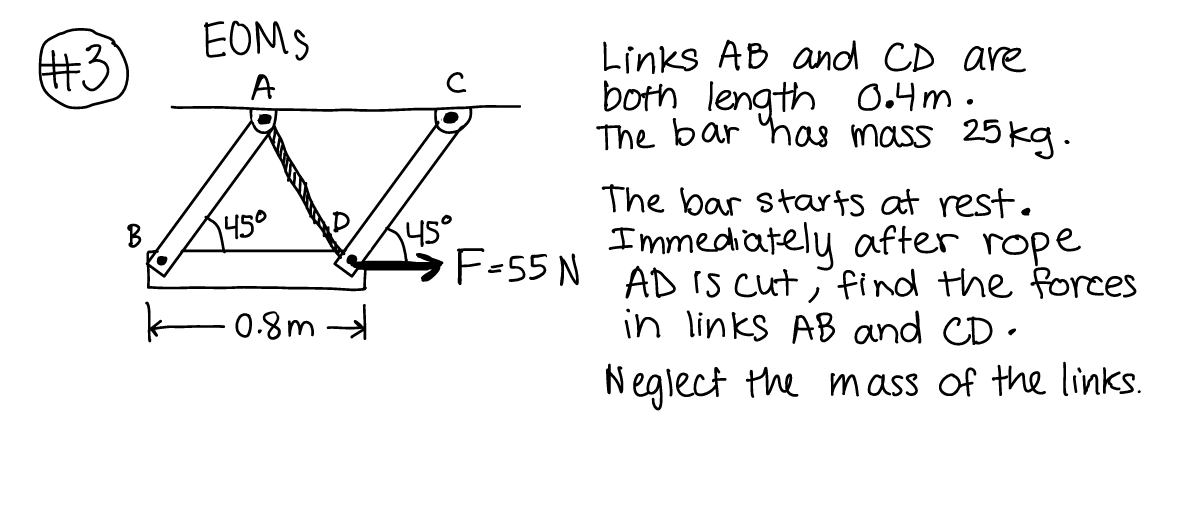

Links \( A B \) and \( C D \) are both length 0.4 m .
The bar has mass 25 kg .
The bar starts at rest. Immediately after rope AD is cut, find the forces in links \( A B \) and \( C D \). Neglect the mass of the links.
( 1 3 ) Links \ ( A B \ ) and \ ( C D \ ) are

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
