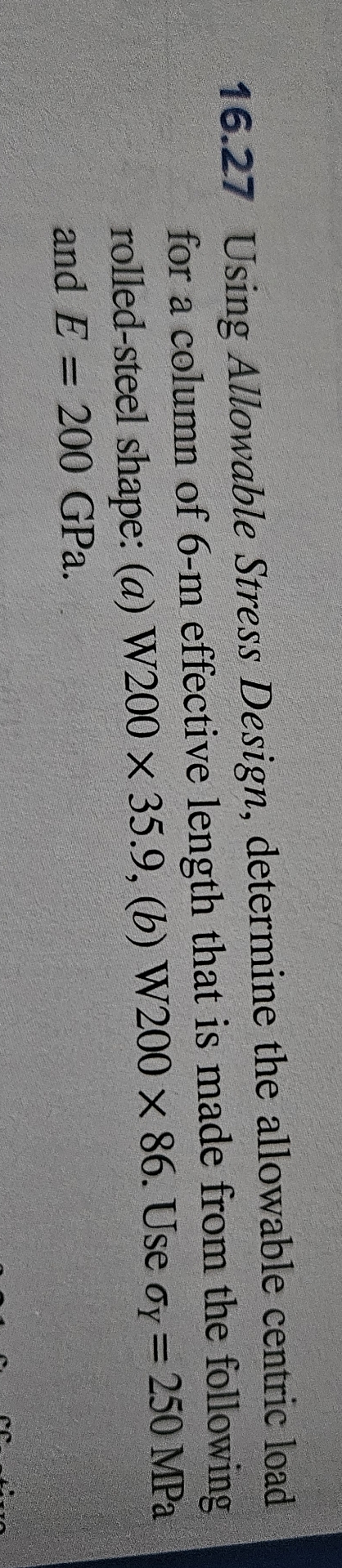

Question: 1 6 . 2 7 Using Allowable Stress Design, determine the allowable centric load for a column of 6 - m effective length that is

16.27 Using Allowable Stress Design, determine the allowable centric load for a column of 6-m effective length that is made from the following rolled-steel shape: (a) W20035.9,(b)W20086. Use Y=250MPa and E=200GPa.
The answers end up being (a)220kN, and (b)841kN. Please explain in detail how to get the answers.
1 6 . 2 7 Using Allowable Stress Design,

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
