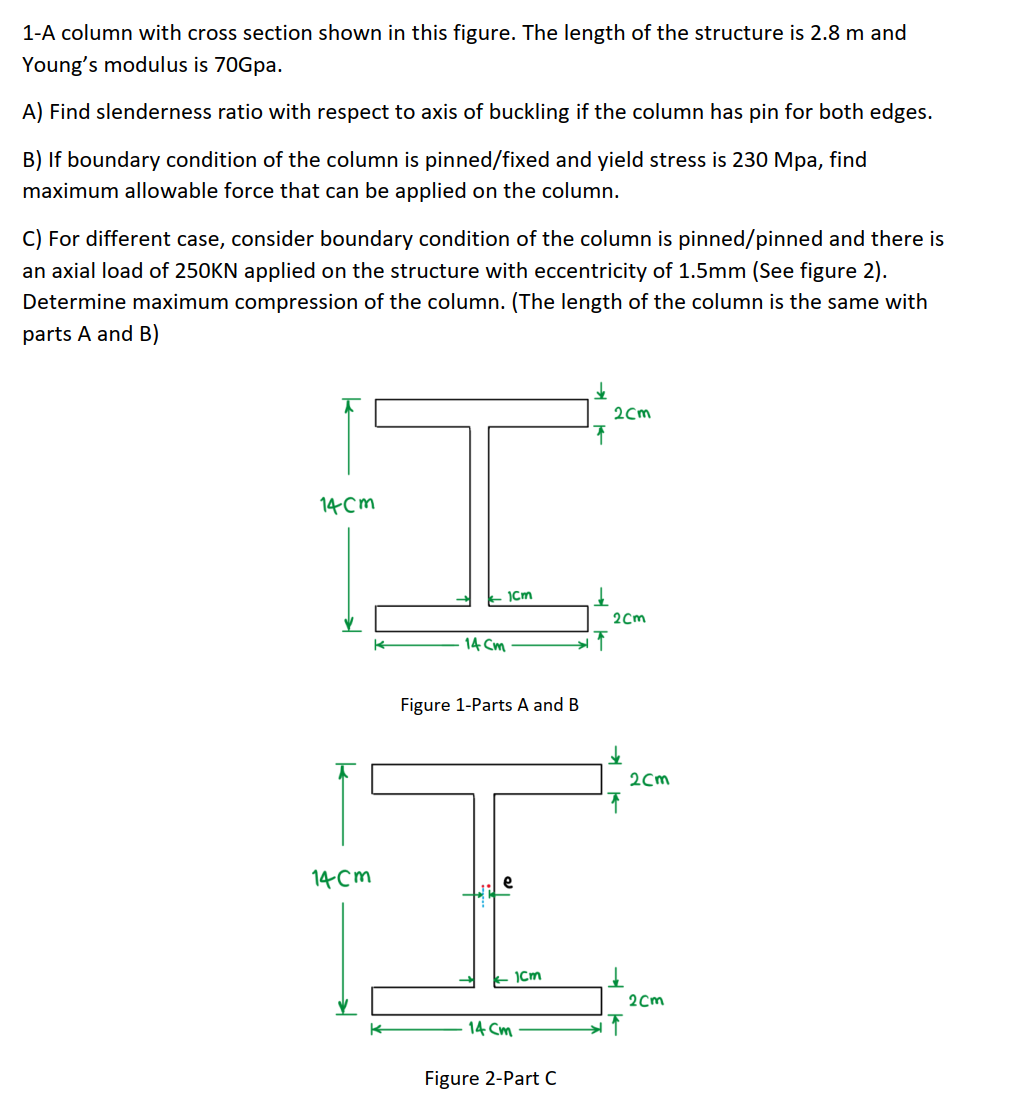

Question: 1 - A column with cross section shown in this figure. The length of the structure is 2 . 8 m and Young's modulus is

1-A column with cross section shown in this figure. The length of the structure is 2.8 m and Young's modulus is 70Gpa.
A) Find slenderness ratio with respect to axis of buckling if the column has pin for both edges.
B) If boundary condition of the column is pinned/fixed and yield stress is 230 Mpa , find maximum allowable force that can be applied on the column.
C) For different case, consider boundary condition of the column is pinned/pinned and there is an axial load of 250 KN applied on the structure with eccentricity of 1.5 mm (See figure 2). Determine maximum compression of the column. (The length of the column is the same with parts A and B)
Higure 1-Parts A and B
