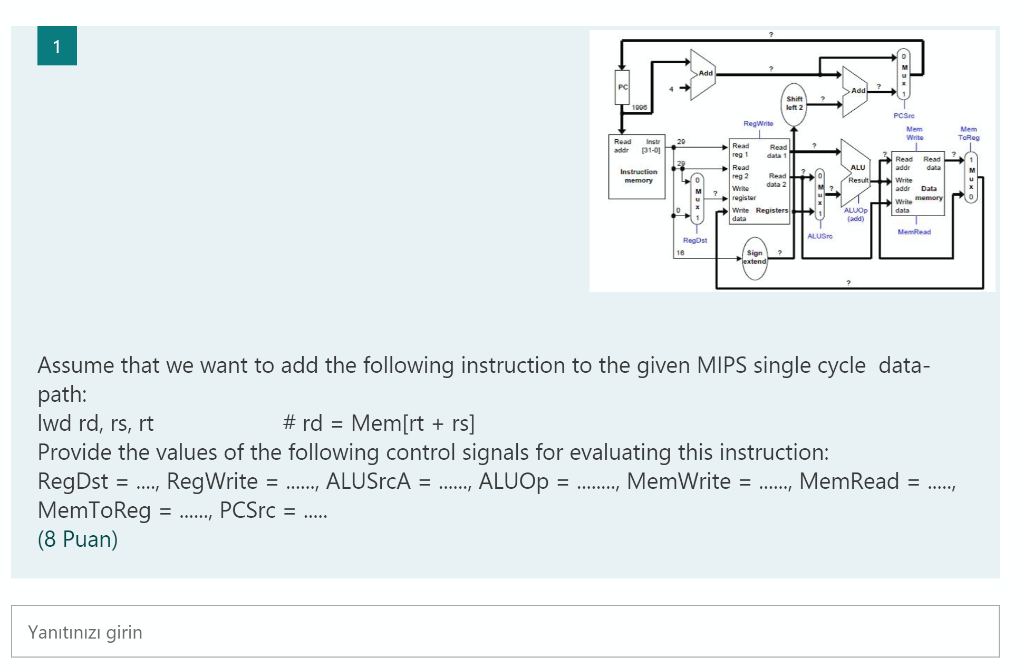

1 Add PC Add 1000 Shift left 2 Regwrite PC Sre Mem Write Mem Toeg 20 Read add p1-01 Instruction memory Read reg! data 1 Read reg 2 Read 2 Write data 2 register Write Registers data ALU Result M. Read Read 1 addr M Write addr Data Write memory Write data ALUOP (ad) Meme ALUS RegDst 16 Sign extend Assume that we want to add the following instruction to the given MIPS single cycle data- path: lwd rd, rs, rt #rd = Mem[rt + rs] Provide the values of the following control signals for evaluating this instruction: RegDst = ...., RegWrite ..., ALUSCA = ....., ALUOP = ..., MemWrite = ....., MemRead MemToReg (8 Puan) = = = ......, PCSrc = ..... Yantnz girin
