Question: 1. Consider the following data for a project: Activity Time (days) 2. Immediate Predecessor(s) Activity A B 4 A 5 A D 2 B E

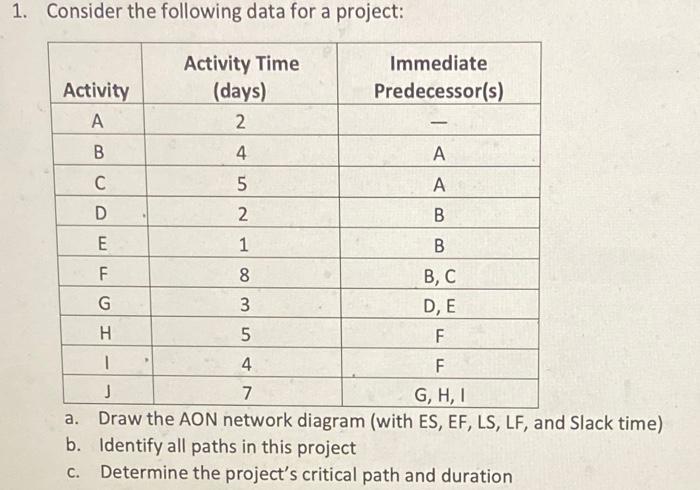

1. Consider the following data for a project: Activity Time (days) 2. Immediate Predecessor(s) Activity A B 4 A 5 A D 2 B E 1 B TO TM 0 00 F 8 B, C G 3 D, E H 5 F 1 4 F J 7 G, H, 1 Draw the AON network diagram (with ES, EF, LS, LF, and Slack time) b. Identify all paths in this project c. Determine the project's critical path and duration

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock

Students Have Also Explored These Related General Management Questions!

1. Consider the following data for a project: Activity Time (days) 2 Immediate Predecessor(s) Activity A 4 A A 5 B D E 2 B 1 8 F G H B B, C D, E F 3 7 1 4 F a. J 7 G, H, 1 Draw the AON network...

Instructions: Show complete works (i.e. steps) when answering all problems- don't just show final results. Otherwise, it will not be graded. Please do it by hand, but make it clear, neat and...

1. Consider the following data for a project: Activity Time Immediate Activity (days) Predecessor(s) A 3 B 4 A 5 D 2 B E 1 B F 9 B, C G 3 D, E H 5 F 1 4 F J 7 G, H, 1 a. Draw the AON network diagram...

1. Consider the following data for a project: Activity Time Immediate Activity (days) Predecessor(s) A 3 B 4 A 5 A D 2 B E 1 B F 9 B, C G 3 D, E H 5 F 1 4 F J 7 G, H, I a. Draw the AON network...

1. Consider the following data for a project: Activity Time (days) 2 Immediate Predecessor(s) Activity B, C DE F F G, H, 1 a. Draw the AON network diagram (with ES, EF, LS, LF, and Slack time) b....

Consider the following data for a project: Activity Time (days) Immediate Predecessor(s) A2 B4 A C5 A D2 B E1 B F 8 B, C G 3 D, E H5 F I4 F J 7 G, H, I a. Draw the network diagram. b. Calculate the...

Can you please help me understand how to solve these practice problems for Operations Management. The questions are very difficult 1. Consider the following data for a project - Activity Immediate...

GAMUW Problem 1 Consider the following tasks for a project. Taik Time (days) Immediate predecessors 3 B 2 6 D 2 E 3 F 3 B 5 H 1 1.5 FH 2 I (a) Draw the project network and determine the critical...

Problem 1+ Consider the following tasks for a project.

Problem 1 Consider the following tasks for a project. Task Time (days) Immediate predecessors ABCDE 3 - 2 A 6 A 2 C 3 A F 3 B G 5 C H 1 C I 1.5 J 2 F,H I (a) Draw the project network and determine...
