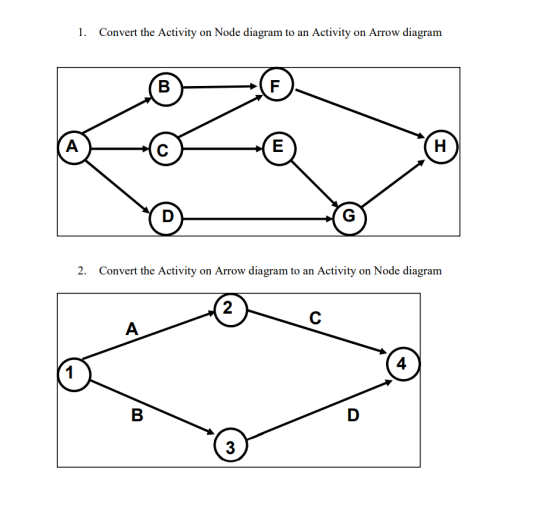

Question: 1. Convert the Activity on Node diagram to an Activity on Arrow diagram B E H D 2. Convert the Activity on Arrow diagram to

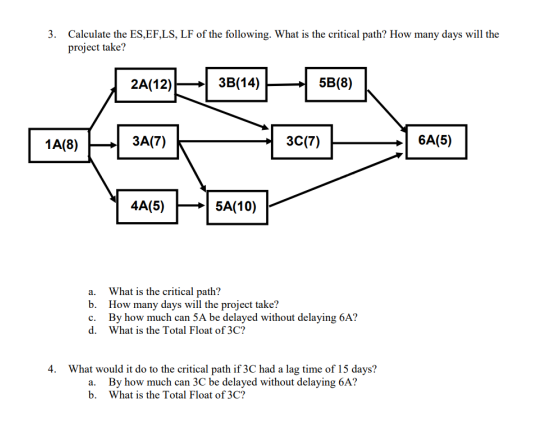

1. Convert the Activity on Node diagram to an Activity on Arrow diagram B E H D 2. Convert the Activity on Arrow diagram to an Activity on Node diagram C A B D 33. Calculate the ES,EF,LS, LF of the following. What is the critical path? How many days will the project take? 2A(12) 3B(14) 5B(8) 1A(8) 3A(7) 3C(7) 6A(5) 4A(5) 5A(10) a. What is the critical path? b. How many days will the project take? c. By how much can 5A be delayed without delaying 6A? d. What is the Total Float of 3C? 4. What would it do to the critical path if 3C had a lag time of 15 days? a. By how much can 3C be delayed without delaying 6A? b. What is the Total Float of 3C

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
