Question: 1- Draw a net network diagram 2- identify critical path 3- Present ES, EF, LS, LF dates and slack of each activity is a table

1- Draw a net network diagram 2- identify critical path 3- Present ES, EF, LS, LF dates and slack of each activity is a table In table, activities, duration and predecessor relationship given-

1- Draw a net network diagram 2- identify

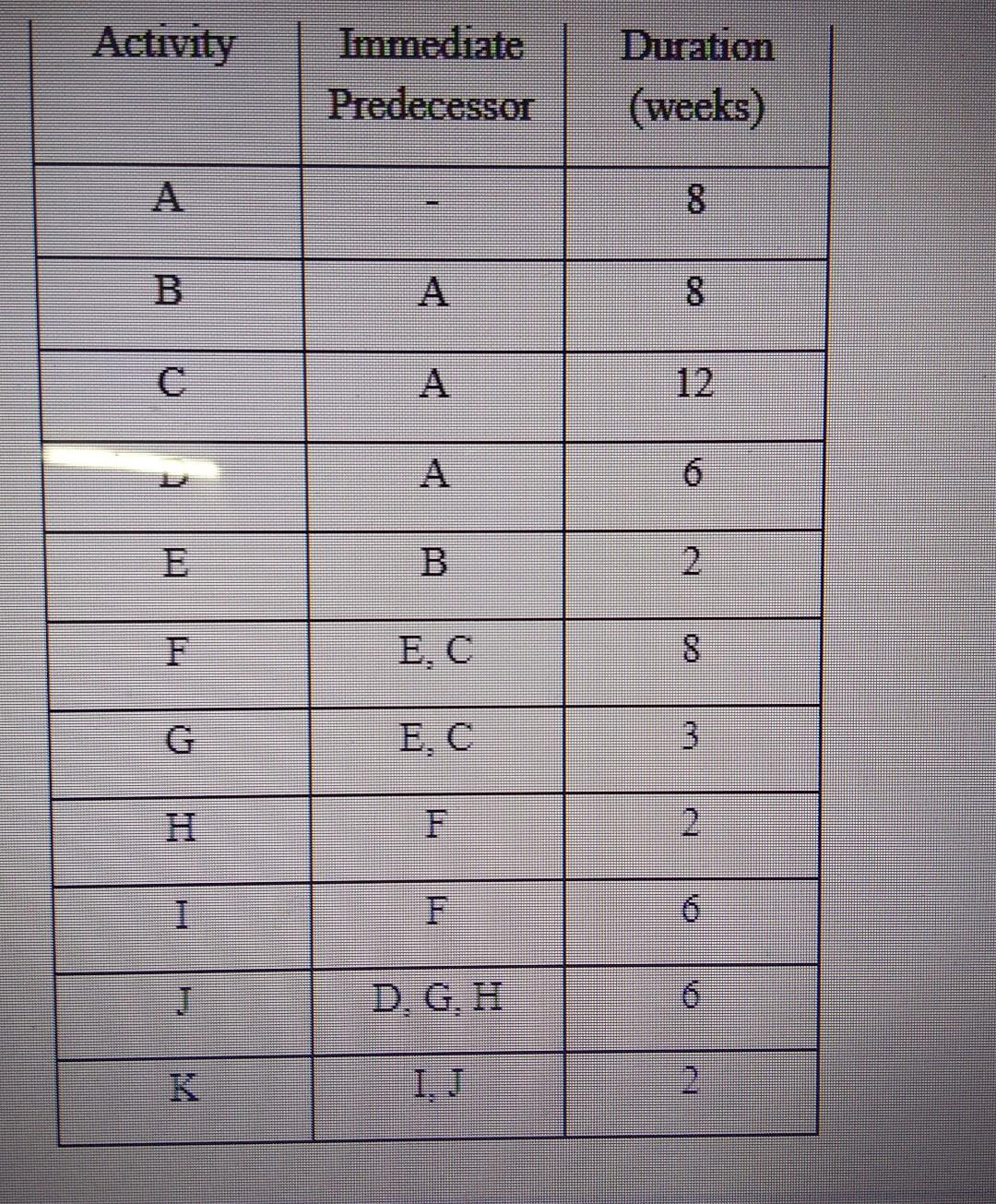

Activity Immediate Predecessor Duration (weeks) 8 8 c A E. C 00 E, C I D. G. H 6

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
