Question: 1 . draw a PERT network diagram 2 . calculate ES , EF , LS , LF and slack 3 . translate ES , EF

1. draw a PERT network diagram
2. calculate ES, EF, LS, LF and slack
3. translate ES, EF, LS, LF into a spreadsheet model
4.indentify all possible paths and note the critical path
Please show all your work and answer all the questions

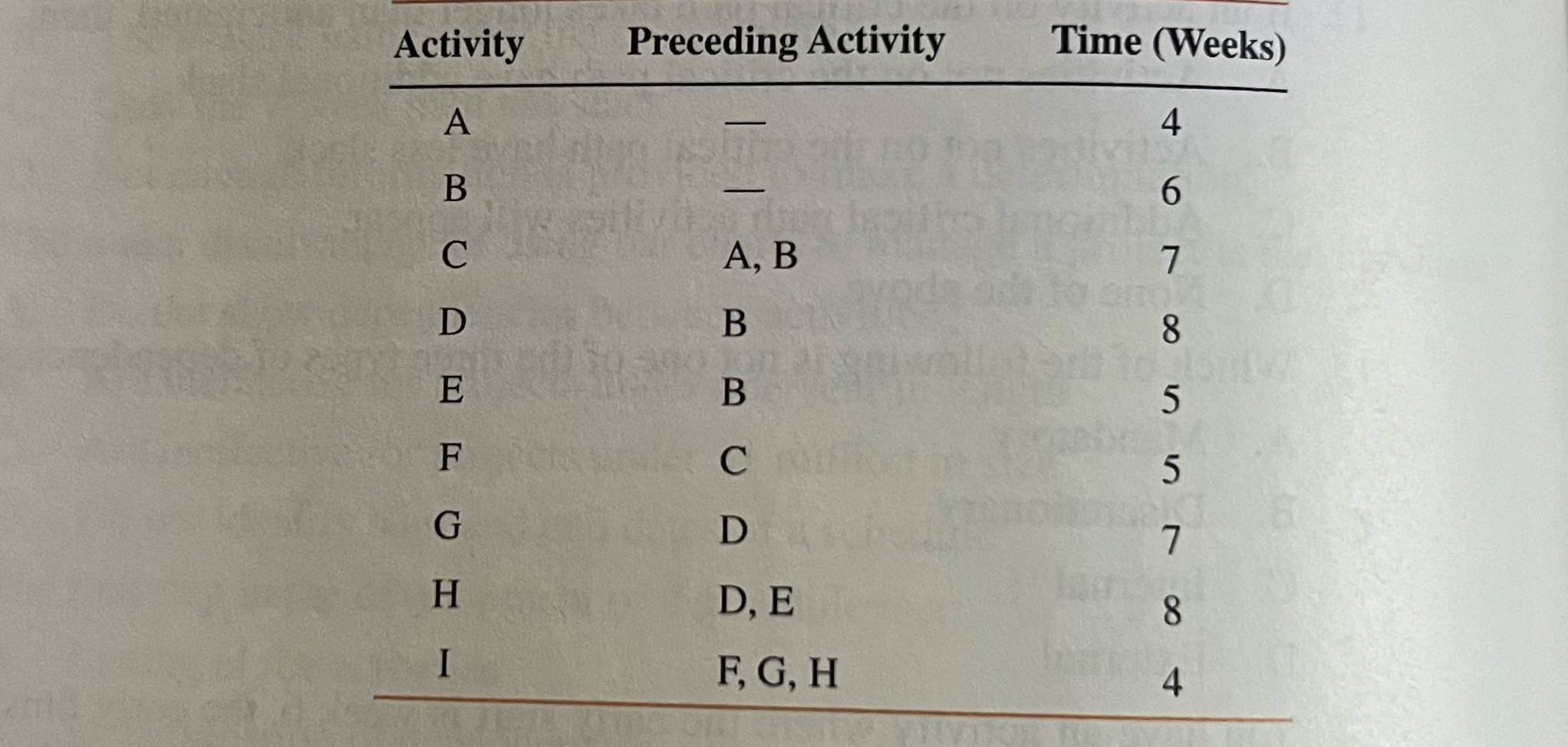

1 . draw a PERT network diagram 2 . calculate ES

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
