Question: 1. Find the transfer function Vout (s) /Vin (s) for the circuit shown in Fig. 6. 2. Simulate the circuit with an input vin (t)

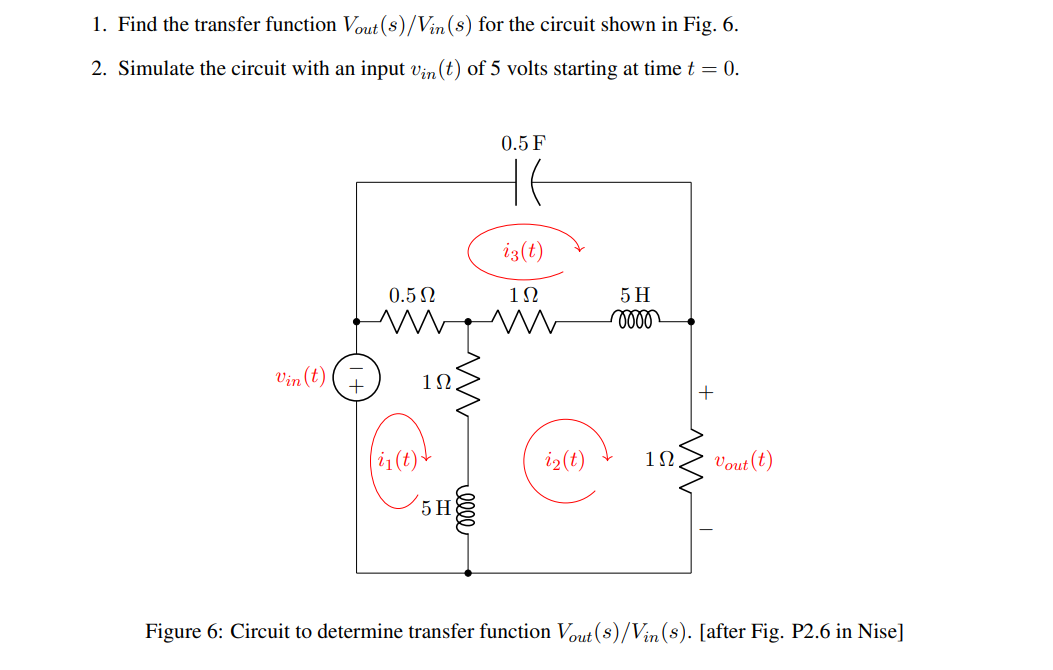

1. Find the transfer function Vout (s) /Vin (s) for the circuit shown in Fig. 6. 2. Simulate the circuit with an input vin (t) of 5 volts starting at time t = 0. 0.5 F i3 (t) 0.50 10 5 H 0000 Vin (t) + + i] (t ) 12 ( t ) 102 Vout (t) 5 H 0000 Figure 6: Circuit to determine transfer function Vout (s) /Vin(s). [after Fig. P2.6 in Nise]
