Question: 1. Given the following function. Factorize and find the product of sums expression for the function (simplify if needed) F=bc + ad' I & Fog

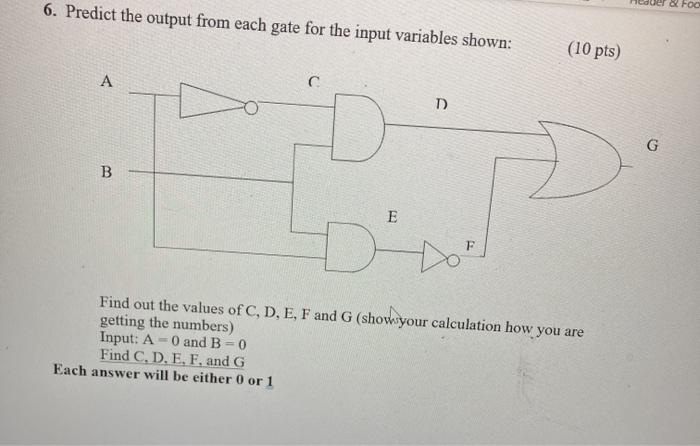

1. Given the following function. Factorize and find the product of sums expression for the function (simplify if needed) F=bc + ad' I & Fog 6. Predict the output from each gate for the input variables shown: (10 pts) A D G B R E F Find out the values of C, D, E, F and G (show your calculation how you are getting the numbers) Input: A = 0 and B = 0 Find C, D, E, F, and G Each answer will be either 0 or 1

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
