Question: 1. Repeat Problem 2 from HW 9 using the finite difference method. Show your work to derive the finite difference equations. In addition to

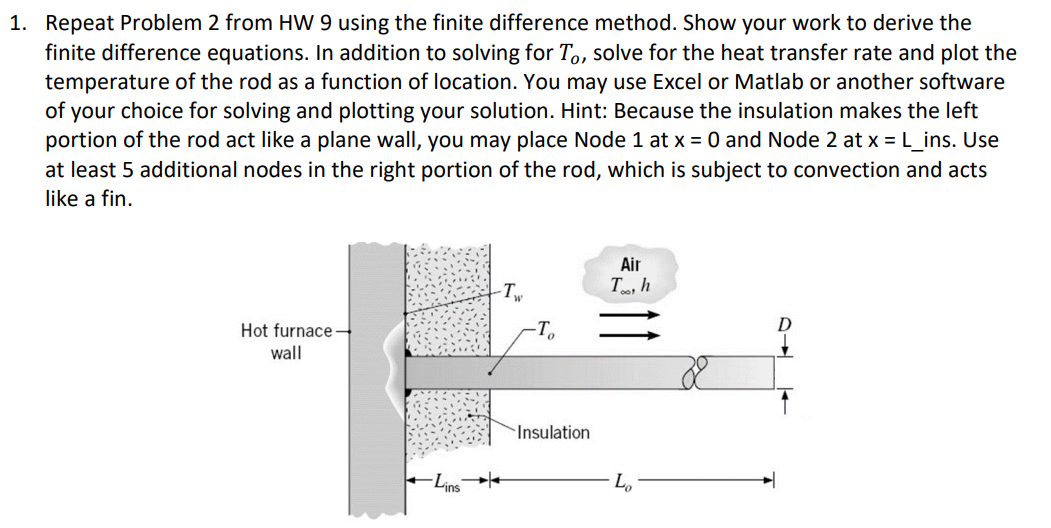

1. Repeat Problem 2 from HW 9 using the finite difference method. Show your work to derive the finite difference equations. In addition to solving for To, solve for the heat transfer rate and plot the temperature of the rod as a function of location. You may use Excel or Matlab or another software of your choice for solving and plotting your solution. Hint: Because the insulation makes the left portion of the rod act like a plane wall, you may place Node 1 at x = 0 and Node 2 at x = L_ins. Use at least 5 additional nodes in the right portion of the rod, which is subject to convection and acts like a fin. Air -Tw Th Hot furnace- wall Lins Insulation Lo
