Question: 1. This question is based on the figure shown below. The figure shows the topology of the network, and the assigned IP address and MAC

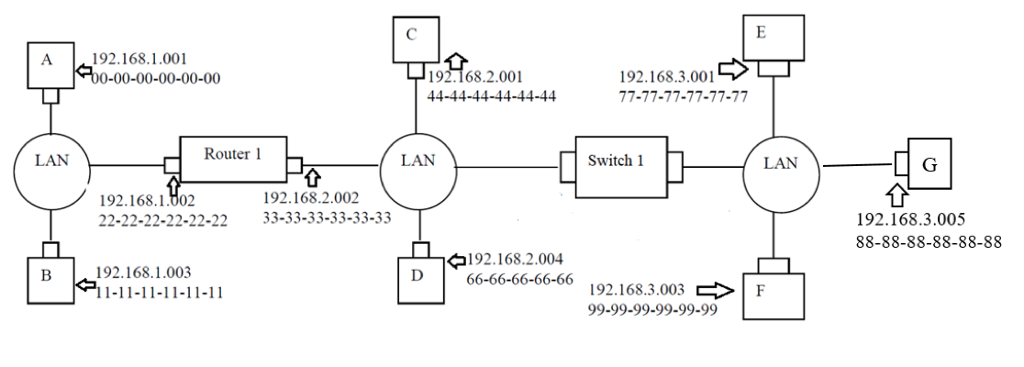

1. This question is based on the figure shown below. The figure shows the topology of the network, and the assigned IP address and MAC address.

a. Consider sending an IP datagram from Host E to Host D. Will Host E ask router R1 to help forward the datagram? In the Ethernet frame containing the IP datagram sending by E, what are the source and destination IP and MAC addresses?

b. Suppose E would like to send an IP datagram to B, and assume that Es ARP cache does not contain Bs MAC address, will E perform an ARP query to find Bs MAC address? In the Ethernet frame (containing the IP datagram destined to B the current expected receiver is B), what are the source and destination IP and MAC addresses?

c. Suppose Host E would like to send an IP datagram to Host F, and neither Es ARP cache contains Fs MAC address nor does Fs ARP cache contain Es MAC address. Further suppose that the switch S1s forwarding table contains entries for Host F and router R1 only. Thus, E will broadcast an ARP request message. Once Host F receives this ARP request message, it will send back to Host E an ARP response message. But will it send an ARP query message to ask for Es MAC address? Why? In the Ethernet frame (containing the IP datagram destined to F the current expected receiver is B), what are the source and destination IP and MAC addresses?

d. Suppose now that the router1 is replaced by a switch 2. Suppose A would like to send an IP datagram to D, and assume that As ARP cache does contain Ds MAC address. Will A perform an APR query to obtain Ds MAC address? In the Ethernet frame containing the IP datagram destined to D (the last hop communication with the next expected receiver is D), what are the source and destination IP and MAC addresses?

1. This question is based on the figure shown below. The figure

192.168.1.001 92.168.2.001 44-44-44-44-44-44 92.168.3.001 77-77-77-77-77-77 LAN Router 1 LAN Switch 1 LAN 192.168.2.002 92.168.1.002 22-22-22-22-22-22 33-33-33-33-33-33 192.168.3.005 88-88-88-88-88-88 192. 1682.004 66-66-66-66-66 192.168.1.003 192.168.3.003 P 99-99-99-99-99-99 192.168.1.001 92.168.2.001 44-44-44-44-44-44 92.168.3.001 77-77-77-77-77-77 LAN Router 1 LAN Switch 1 LAN 192.168.2.002 92.168.1.002 22-22-22-22-22-22 33-33-33-33-33-33 192.168.3.005 88-88-88-88-88-88 192. 1682.004 66-66-66-66-66 192.168.1.003 192.168.3.003 P 99-99-99-99-99-99

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock

Students Have Also Explored These Related Databases Questions!

1. This question is based on the figure shown below. The figure shows the topology of the network, and the assigned IP address and MAC address. a . Consider sending an IP datagram from Host E to Host...

1. This question is based on the figure shown below. The figure shows the topology of the network, and the assigned IP address and MAC address. a) Consider sending an IP datagram from Host E to Host...

A192.168.1.001 ? 19H682.001 192.168.3.001 77-77-77-77-77-77 00-00-00-00-00-00 44-44-44-44-44-44 LAN Router 1 LAN Switch 1 LAN 92.168.1.602 22-22-22-22-22-22 33-33-33-33-33-33 92.168.2.002...

1. This question is based on the figure shown below. The figure shows the topology of the network, and the assigned IP address and MAC address. a. Consider sending an IP datagram from Host E to Host...
