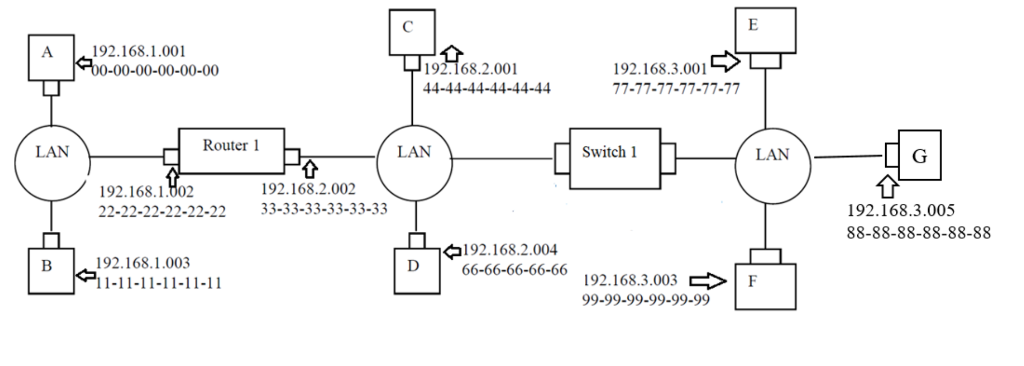

1. This question is based on the figure shown below. The figure shows the topology of the network, and the assigned IP address and MAC address.

a. Consider sending an IP datagram from Host E to Host D. Will Host E ask router R1 to help forward the datagram? In the Ethernet frame containing the IP datagram, what are the source and destination IP and MAC addresses?

b. In the Ethernet frame (containing the IP datagram destined to F), what are the source and destination IP and MAC addresses?

c. Suppose Host E would like to send an IP datagram to Host F, and neither Es ARP cache contains Fs MAC address nor does Fs ARP cache contain entries for Host F and router R1 only. Thus, E will broadcast an ARP response message. But will it send an ARP query message to ask for Es MAC address? Why? In the Ethernet frame (containing the IP datagram destined to F), what are the source and destination IP and MAC addresses?

d. Suppose now that the router 1 is replaced by a switch. Suppose A would like to send an IP datagram to D, and assume that As ARP cache does contain Ds MAC address. In the Ethernet frame, what are the source and destination IP and MAC addresses?

A192.168.1.001 ? 19H682.001 192.168.3.001 77-77-77-77-77-77 00-00-00-00-00-00 44-44-44-44-44-44 LAN Router 1 LAN Switch 1 LAN 92.168.1.602 22-22-22-22-22-22 33-33-33-33-33-33 92.168.2.002 192.168.3.005 88-88-88-88-88-88 192.168.2.004 B192.168.1.003 D 66-66-66-66-66 192.168.3.003 F 99-99-99-99-99-99
