Question: 1. Using the information given in the table, sketch an activity-on-node (AON) logic diagram and determine the project's duration and critical path. Also determine the

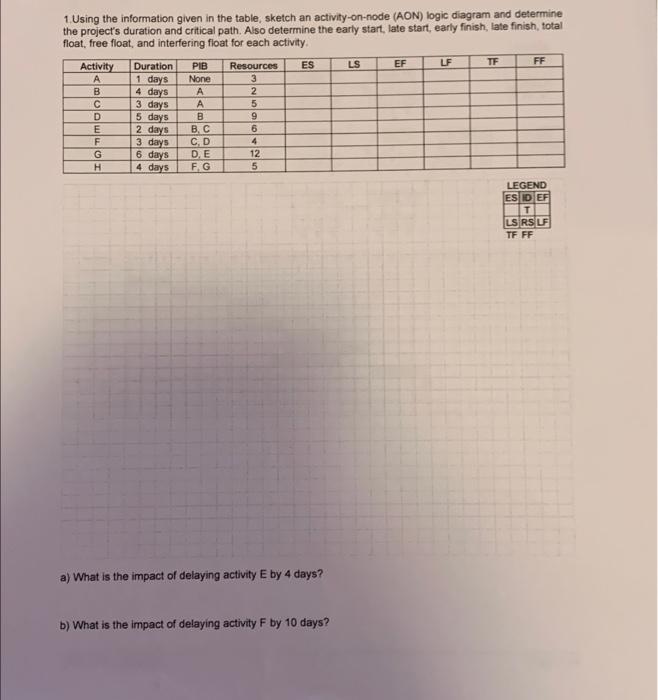

1. Using the information given in the table, sketch an activity-on-node (AON) logic diagram and determine the project's duration and critical path. Also determine the early start, late start, early finish, late finish total float, free float, and interfering float for each activity Activity Duration PIB Resources ES LS EF LF TF FF None 3 B 2 . 5 D B 9 . 6 CD 4 DE 12 H 4 days F G 5 To molo 1 days 4 days 3 days 5 days 2 days 3 days 6 days F G LEGEND ESIDEF T LS RSLF TF FF a) What is the impact of delaying activity E by 4 days? b) What is the impact of delaying activity F by 10 days

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
