1. What route will message from PC2 to PC1 will take? Do not generate any traffic yet.

2. Generate traffic from PC2 to PC1. Check the route and ARP cache on both virtual PCs.

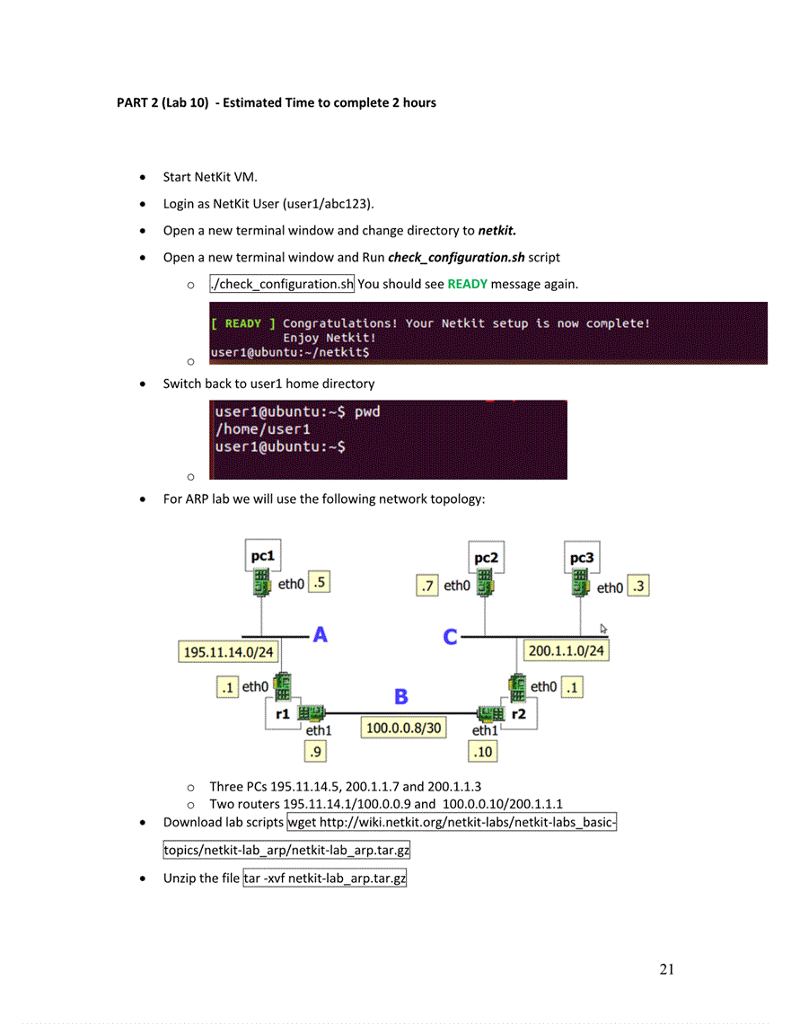

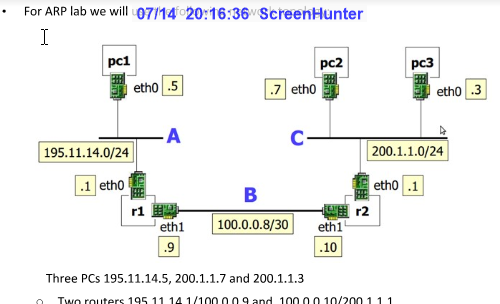

PART 2 (Lab 10) Estimated Time to complete 2 hours Start NetKit VM .Login as NetKit User (user1l/abc123) . Open a new terminal window and change directory to netkit Open a new terminal window and Run check configuration.sh script o /check_configuration.sh You should see READY message again. I READY J Congratulations! Your Netkit setup is now complete! Enjoy Netkit! user10ubuntu:-etkits Switch back to user1 home directory user1@ubuntu:- pwd /hone/user1 user1@ubuntu:-S For ARP lab we will use the following network topology: pc1 pc2 pc3 eth0 .5 eth0 eth0 .3 195.11.14.0/24 200.1.1.0/24 eth0 eth0 .1 rl eth 100.0.0.8/30 eth1 10 o Three PCs 195.11.14.5, 200.1.1.7 and 200.1.1.3 o Two routers 195.11.14.1/100.0.0.9 and 100.0.0.10/200.1.1.1 Download lab scripts wget http://wiki.netkit.orgetkit-labsetkit-labs_basic opicsetkit-lab_arpetkit-lab_arp.tar.g Unzip the file tar xvf netkit-lab arp.tar.g 21
