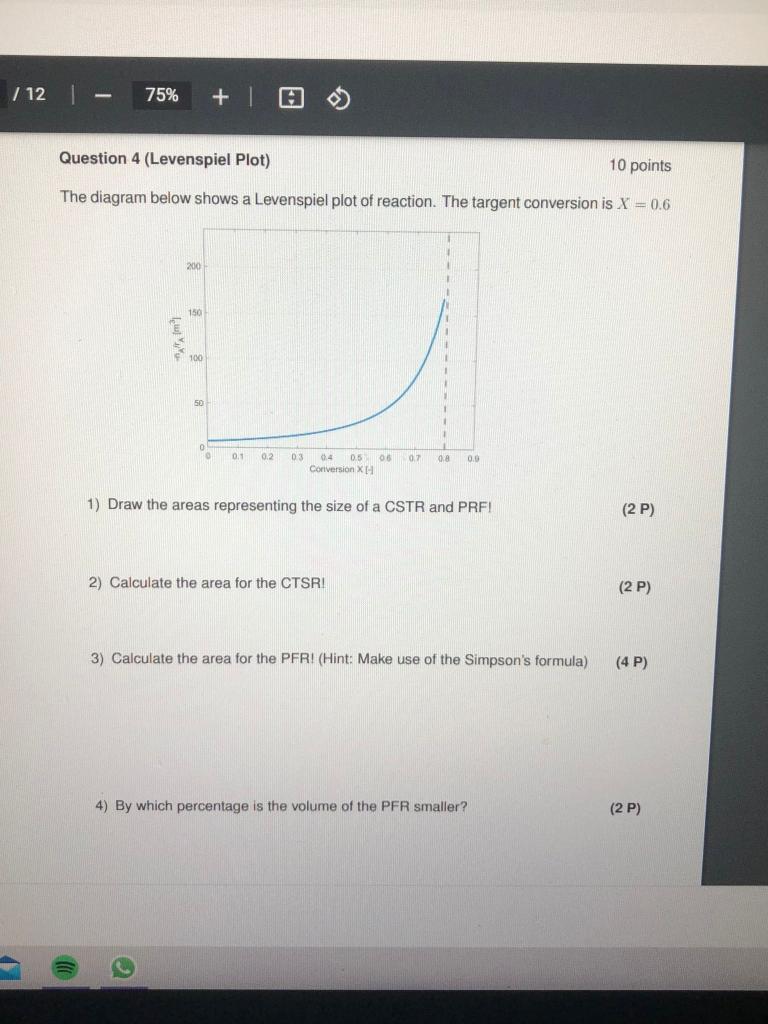

/ 12 75% Question 4 (Levenspiel Plot) 10 points The diagram below shows a Levenspiel plot of reaction. The targent conversion is X = 0.6 200 1 1 150 1 1 100 1 . ! 50 1 1 1 0.1 0.2 03 06 0.7 0.8 0.0 04 0.5 Cortversion 1) Draw the areas representing the size of a CSTR and PRFI (2P) 2) Calculate the area for the CTSRI (2P) 3) Calculate the area for the PFR! (Hint: Make use of the Simpson's formula) (4 P) 4) By which percentage is the volume of the PFR smaller? (2P)
