Question: Question 4 (Levenspiel Plot) 10 points The diagram below shows a Levenspiel plot of reaction. The targent conversion is X = 0.6 200 150 Am

Question 4 (Levenspiel Plot) 10 points The diagram below shows a

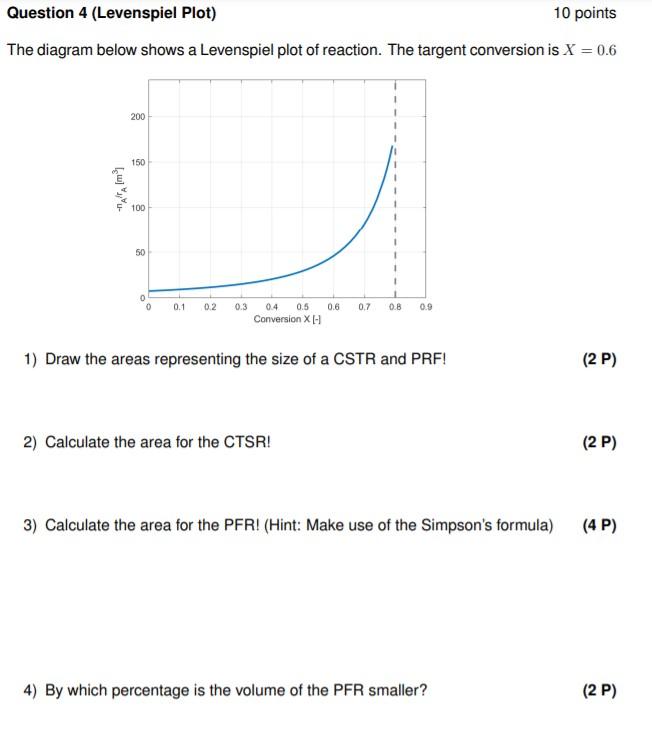

Question 4 (Levenspiel Plot) 10 points The diagram below shows a Levenspiel plot of reaction. The targent conversion is X = 0.6 200 150 "Am 100 50 0.1 0.2 0.3 0.6 0.7 0.8 0.9 04 0.5 Conversion XL 1) Draw the areas representing the size of a CSTR and PRF! (2P) 2) Calculate the area for the CTSR! (2P) 3) Calculate the area for the PFR! (Hint: Make use of the Simpson's formula) (4 P) 4) By which percentage is the volume of the PFR smaller? (2P)

Step by Step Solution
