Question: ( 2 0 % ) Problem 1 : Compute the maximum deflection of the W 1 0 x 3 9 cantilever beam shown? Neglect the

(20%)Problem 1:

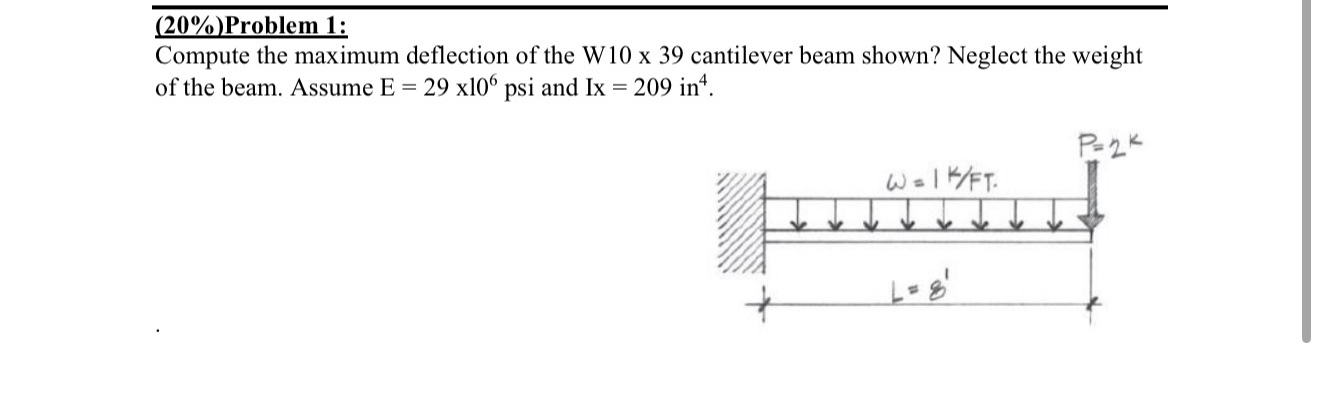

Compute the maximum deflection of the W10 x 39 cantilever beam shown? Neglect the weight of the beam. Assume E=29xl06 psi and Ix=209in4.
( 2 0 % ) Problem 1 : Compute the maximum

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
