Question: ( 2 0 Pts ) When switch S in figure below is open, the voltmeter V of the battery reads 3 . 0 8 V

(20 Pts)

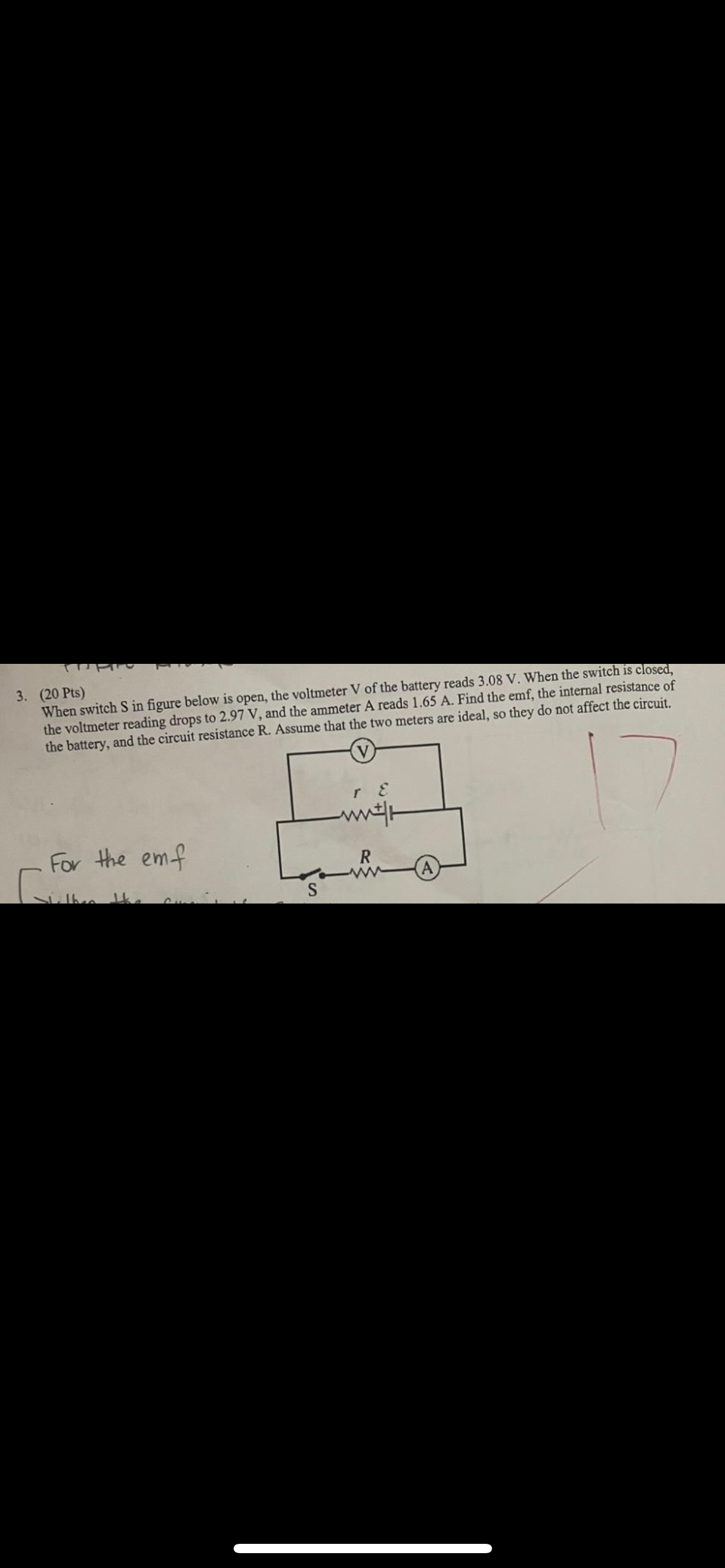

When switch S in figure below is open, the voltmeter V of the battery reads 3.08 V . When the swicn is closed, the voltmeter reading drops to 2.97 V , and the ammeter A reads 1.65 A . Find the emf, the internal resistance of the battery, and the circuit resistance R. Assume that the two meters are ideal, so they do not affect the circuit.
