Question: 2 1 - 2 In cold - shot - cooling or quench operation of a three - stage fixed - bed catalytic reactor 1 0

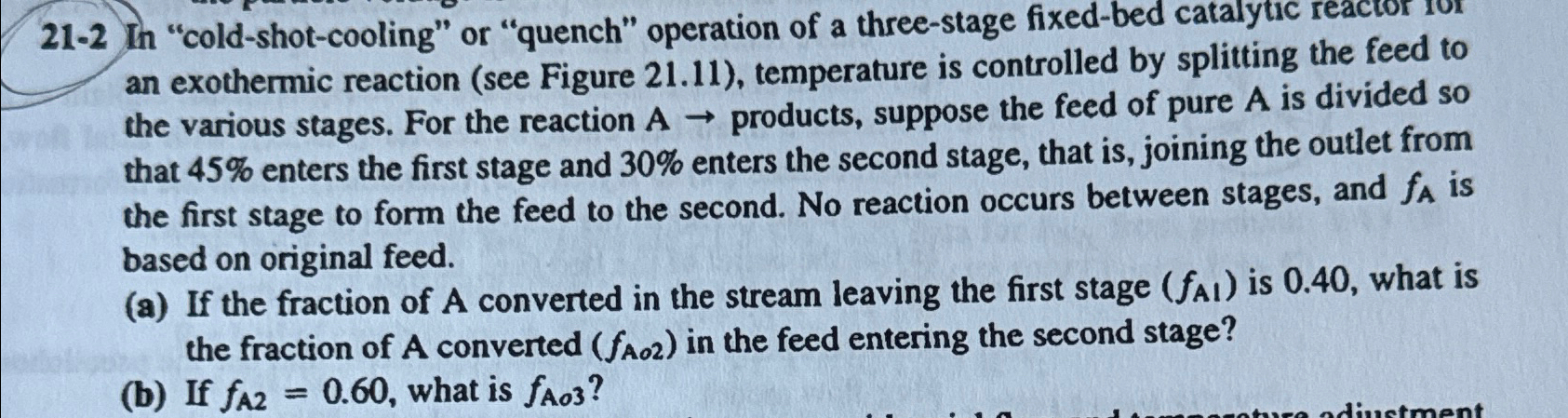

21-2 In "cold-shot-cooling" or "quench" operation of a three-stage fixed-bed catalytic reactor 10r an exothermic reaction (see Figure 21.11), temperature is controlled by splitting the feed to the various stages. For the reaction A products, suppose the feed of pure A is divided so that 45% enters the first stage and 30% enters the second stage, that is, joining the outlet from the first stage to form the feed to the second. No reaction occurs between stages, and fA is based on original feed.
(a) If the fraction of A converted in the stream leaving the first stage (fAl) is 0.40, what is the fraction of A converted (fAO2) in the feed entering the second stage?
(b) If fA2=0.60, what is fA03?
 21-2 In "cold-shot-cooling" or "quench" operation of a three-stage fixed-bed catalytic
