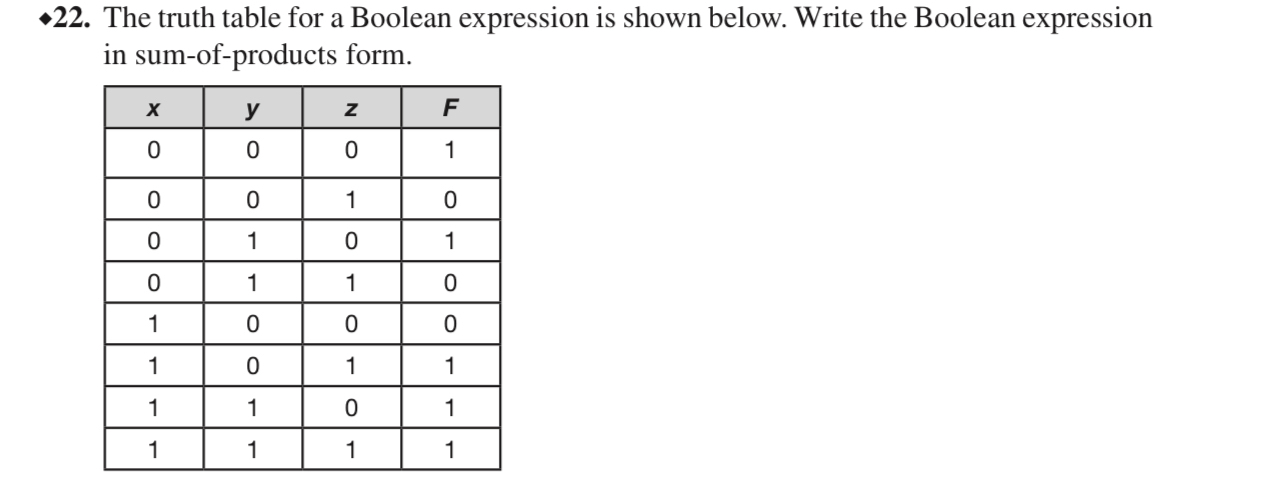

Question: * 2 2 . The truth table for a Boolean expression is shown below. Write the Boolean expression in sum - of - products form.

*22. The truth table for a Boolean expression is shown below. Write the Boolean expression
in sum-of-products form.
* 2 2 . The truth table for a Boolean expression

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
