Question: The truth table for a Boolean expression is shown below: Write the Boolean expression for Fin sum - of - products form. Write a simplified

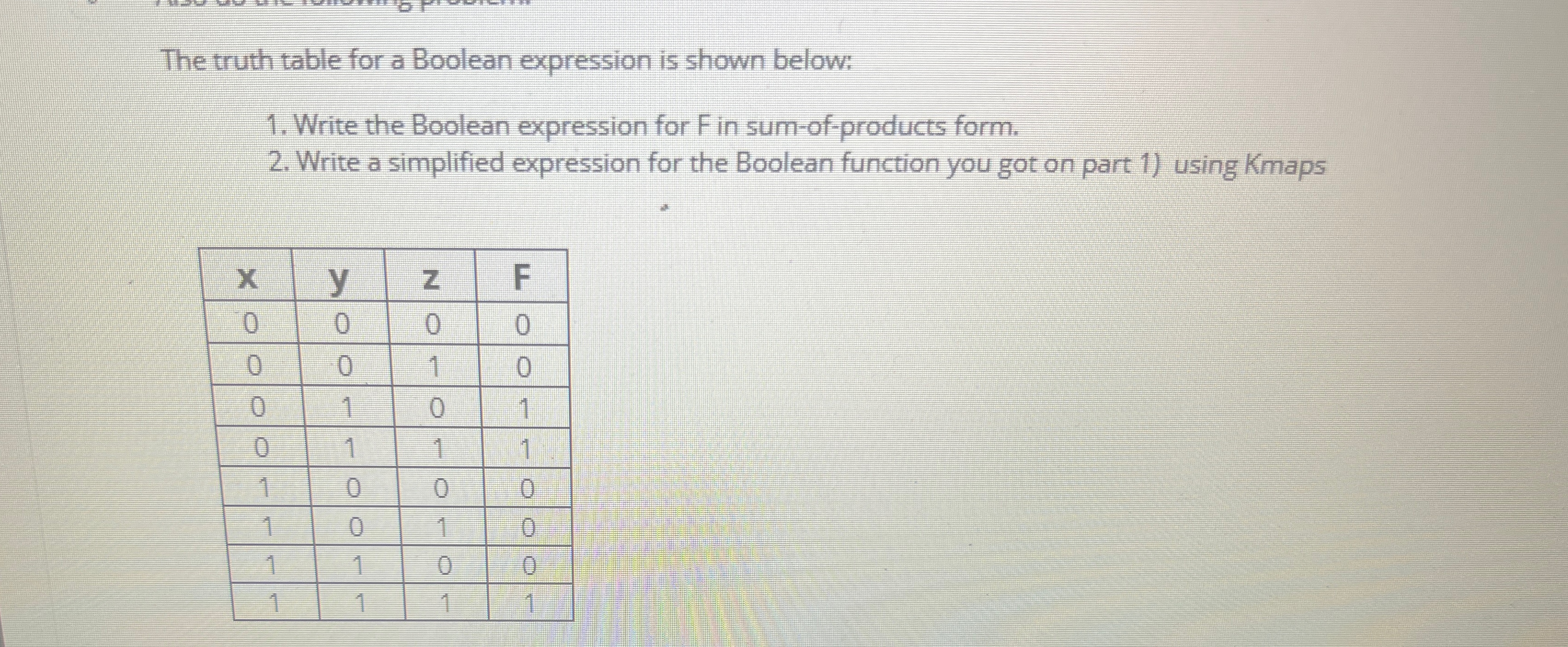

The truth table for a Boolean expression is shown below:
Write the Boolean expression for Fin sum-of-products form.
Write a simplified expression for the Boolean function you got on part 1) using Kmaps
\table[[x,y,z,F
The truth table for a Boolean expression is shown below: Write

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
