Question: The truth table for a Boolean expression is shown below. Write theBoolean expression in sum-of-products form. 23. The truth table for a Boolean expression is

The truth table for a Boolean expression is shown below. Write theBoolean expression in sum-of-products form.

The truth table for a Boolean expression is shown below. Write theBoolean

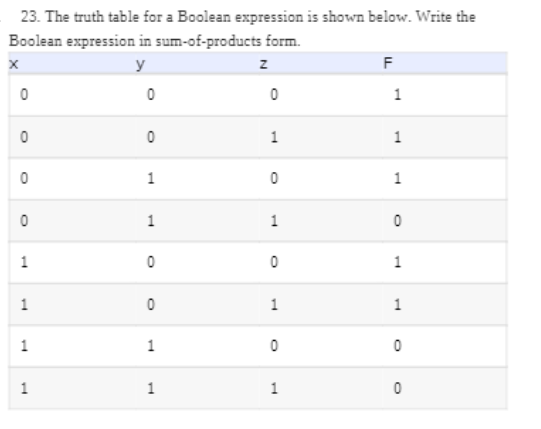

23. The truth table for a Boolean expression is shown below. Write the Boolean expression in sum-of-products form. x y z F 0 0 0 1 0 O 1 1 1 0 1 1 0 1 0 1 1 0 1 0 0 1 1 0 1 1 1 1 0 0 1 1 1 1 0

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock

Students Have Also Explored These Related Databases Questions!

0 0 0 0 1 1 0 + 0 1 1 o + D 1 1 1 0 w the logic magram for the imported express a pare 28. Construct the XOR operator wing only AND, OR, and NOT 37. Find the truth able that describes the following...

1 4 . Simplify the following functional expressions using Boolean algebra and its identities. List the identity used at each step. a ) F ( x , y , z ) = y ( x ' + ( x + y ) ' ) b ) F ( x , y , z ) =...

23. The truth table for a Boolean expression is shown below. Write the Boolean expression in sum-of-products form. Z y 0 0 F 1 0 0 1 0 0 0 0 1 1 1 1 0 1 1 0 1 Oo 1 0 1 1 1 0 1 0 1 1 1 0

23. The truth table for a Boolean expression is shown below. Write the Boolean expression in sum-ofproducts form. x y Z F 0 0 0 1 0 0 1 1 0 1 0 1 0 1 1 0 1 0 0 1 1 0 1 1 1 1 0 0 1 1 1 0

23. The truth table for a Boolean expression is shown below. Write the Boolean expression in sum-of-products form. X y 0 N 0 F 1 0 1 1 1 1 1 1 0 1 0 0 1 1 0 1 1 1 1 0 0 1 1 1 0

The truth table for a Boolean expression is shown below: Write the Boolean expression for Fin sum - of - products form. Write a simplified expression for the Boolean function you got on part 1 )...

The truth table for a Boolean expression is shown below: Write the Boolean expression for F in sum - of - products form. Write a simplified expression for the Boolean function you got on part 1 )...

1. The truth table for a Boolean expression is shown below. Write the Boolean expression in sum-of-products form. Do not simplify. 0 0 0 1 0 1 01 1 0 01 1 0 11 2. Draw the combinational circuit that...

answers with solving process 16. Simplify the following functional expressions using Boolean algebra and its identities. List the identity used at each step. a) z (w + x)' + w'xz + wxyz' + wx'yz' b)...

A.) The truth table for a Boolean expression is shown below. Write the Boolean expression on SOP form. B.) Find the truth table that describes the following circuit: F10011101 z010-10-01 y00110011...
