Question: 2. (20 points) Consider the five operations in the table below. Operands are signed 4-bit numbers. Complete the table by showing the effect of the

2. (20 points) Consider the five operations in the table below.

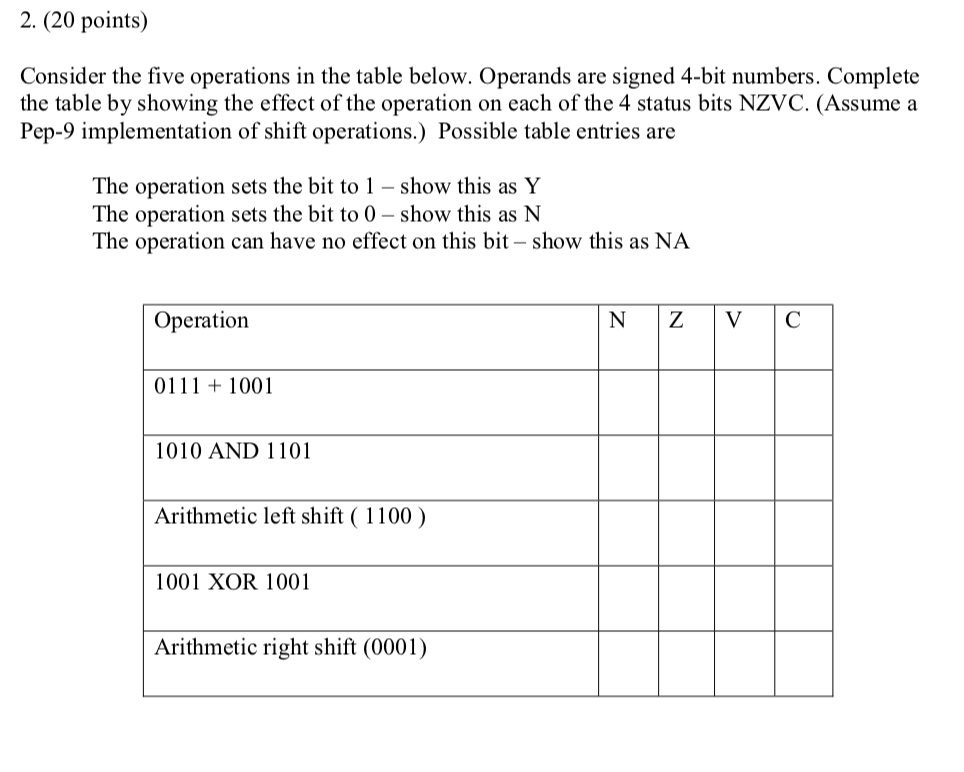

2. (20 points) Consider the five operations in the table below. Operands are signed 4-bit numbers. Complete the table by showing the effect of the operation on each of the 4 status bits NZVC. (Assume a Pep-9 implementation of shift operations.) Possible table entries are The operation sets the bit to 1 - show this as Y The operation sets the bit to 0-show this as N The operation can have no effect on this bit - show this as NA Operation 011 1001 1010 AND 1101 Arithmetic left shift (1100) 1001 XOR 1001 Arithmetic right shift (0001)

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
