Question: 2. (25 points) Use the information in the table to complete the following tasks. Activity Description Predecessors Duration A Preliminary design --- 6 B Evaluation

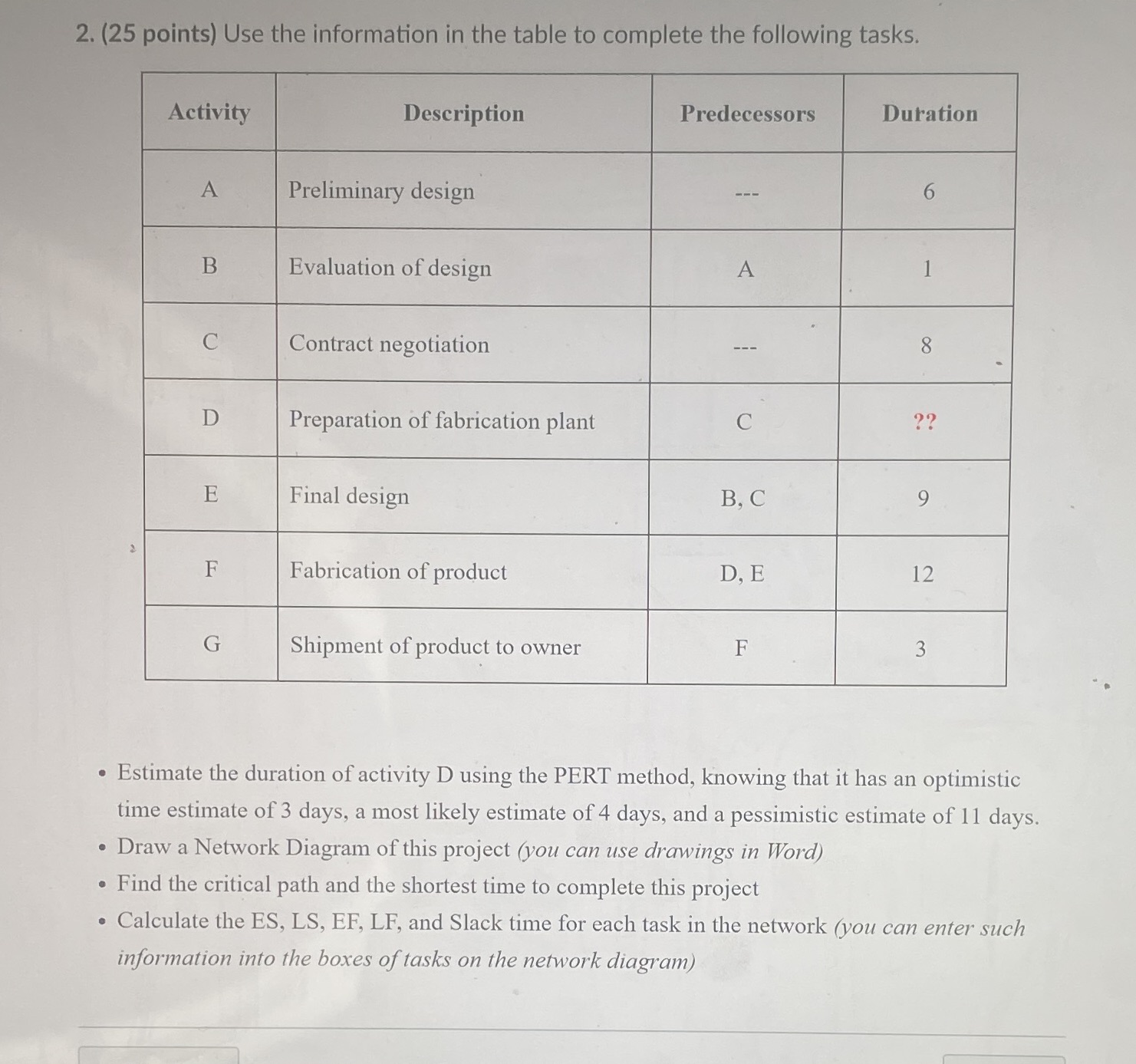

2. (25 points) Use the information in the table to complete the following tasks. Activity Description Predecessors Duration A Preliminary design --- 6 B Evaluation of design A C Contract negotiation --- 8 D Preparation of fabrication plant C ? ? E Final design B. C 9 F Fabrication of product D, E 12 G Shipment of product to owner F 3 . Estimate the duration of activity D using the PERT method, knowing that it has an optimistic time estimate of 3 days, a most likely estimate of 4 days, and a pessimistic estimate of 11 days. . Draw a Network Diagram of this project (you can use drawings in Word) . Find the critical path and the shortest time to complete this project . Calculate the ES, LS, EF, LF, and Slack time for each task in the network (you can enter such information into the boxes of tasks on the network diagram)

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock

Students Have Also Explored These Related General Management Questions!

Estimate the duration of activity D using the PERT method, knowing that it has an optimistic time estimate of 3 days, a most likely estimate of 4 days, and a pessimistic estimate of 11 days. Draw a...
