• Estimate the duration of activity D using the PERT method, knowing that it has an optimistic time estimate of 3 days, a most likely estimate of 4 days, and a pessimistic estimate of 11 days.
• Draw a Network Diagram of this project (you can use drawings in Word)
• Find the critical path and the shortest time to complete project
• Calculate the ES, LS, EF, LF, and Slack time for each task in the network (you can enter such information into the boxes of tasks on the network diagram)

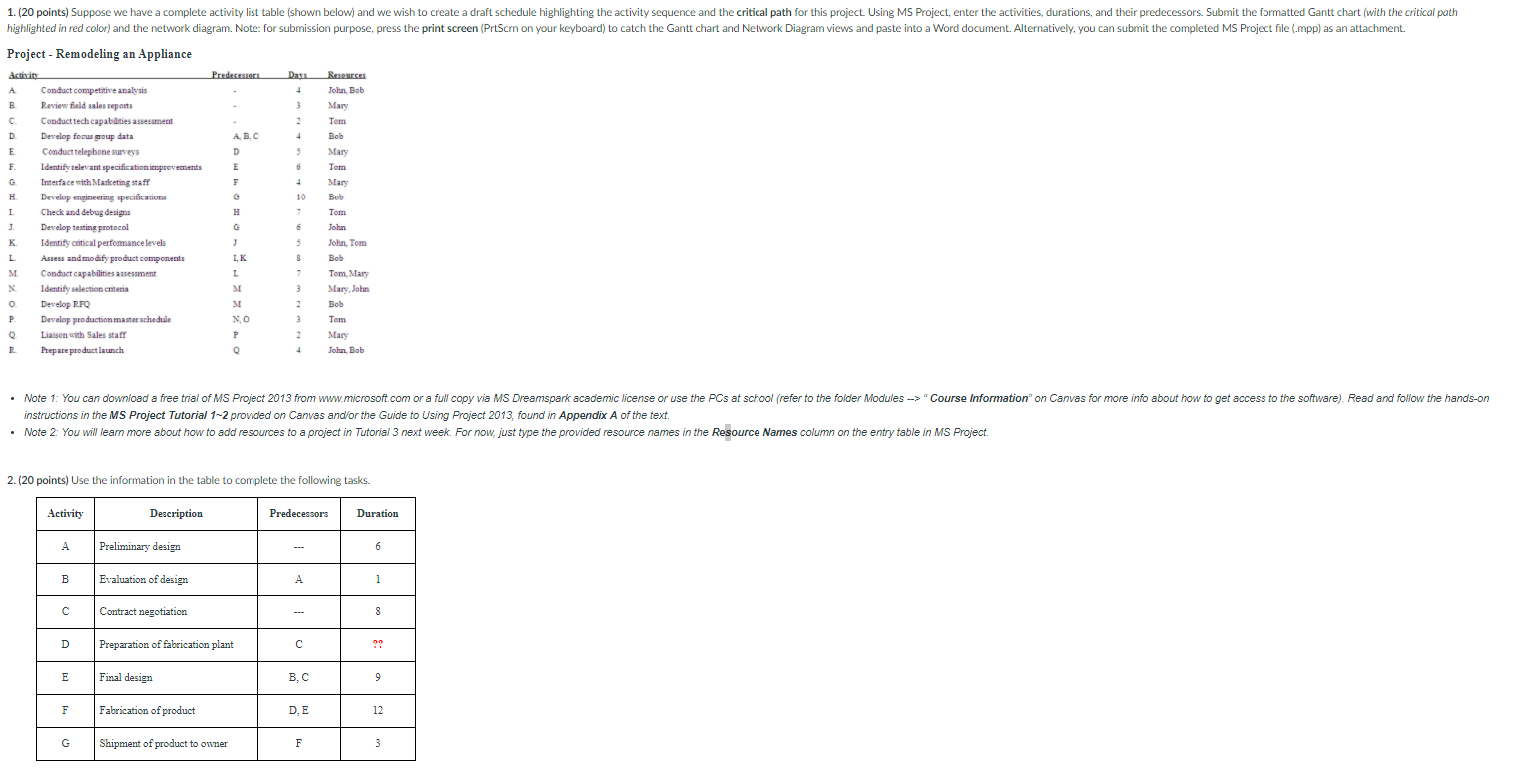

Tom Bob Tom 1. (20 points) Suppose we have a complete activity list table (shown below) and we wish to create a draft schedule highlighting the activity sequence and the critical path for this project. Using MS Project, enter the activities, durations, and their predecessors. Submit the formatted Gantt chart (with the critical path highlighted in red color) and the network diagram. Note: for submission purpose, press the print screen (PrtScrn on your keyboard) to catch the Gantt chart and Network Diagram views and paste into a Word document. Alternatively, you can submit the completed MS Project file (.mpp) as an attachment. Project - Remodeling an Appliance Activity Predecessors Dass Resources Conduct competitive analysis 4 -- John Bob B Review field sales reports 3 Mary Conduct tech capabilities assessment 2 D Develop focus goup data ABC 4 E Conduct telephone surveys D 5 Mary F. Identify relevant specification improvements E 6 Interface with Marketing staff Mary Develop engineering specifications 10 Bob 1. Check and debug designs 7 J. Develop testing protocol G 6 John K Identify critical perfomance levels John, Tom L. Assess and modify product components IK Bob M Conduct capabilities assessment L 7 Tom Mary N Identify selection criteria M 3 Mary John 0 Develop R.FO M 2 Bob Develop production master schedule NO 3 Tom O Liaison with Sales staff P 2 Mary R Prepare product launch Q 4 John Bob F 4 G H Tom ************ 3 S P P Note 1: You can download a free trial of MS Project 2013 from www.microsoft.com or a full copy via MS Dreamspark academic license or use the PCs at school (refer to the folder Modules --> Course Information" on Canvas for more info about how to get access to the software). Read and follow the hands-on instructions in the MS Project Tutorial 1-2 provided on Canvas and/or the Guide to Using Project 2013, found in Appendix A of the text. Note 2: You will learn more about how to add resources to a project in Tutorial 3 next week. For now, just type the provided resource names in the Resource Names column on the entry table in MS Project. 2. (20 points) Use the information in the table to complete the following tasks. Activity Description Predecessors Duration Preliminary design 6 B Evaluation of design A 1 Contract negotiation 8 D Preparation of fabrication plant 97 E Final design B, C 9 F Fabrication of product DE 12 G Shipment of product to owner F 3
