2. b) Please use the data above to prepare control limits needed for the construction of an chart and an R chart. Assume a confidence level of 3. Draw the charts.

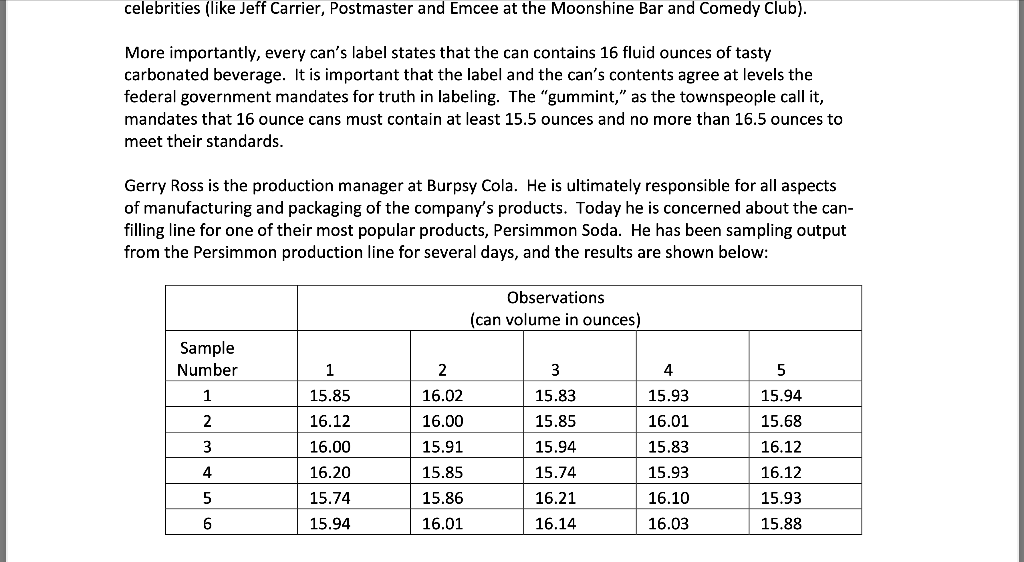

celebrities (like Jeff Carrier, Postmaster and Emcee at the Moonshine Bar and Comedy Club). More importantly, every can's label states that the can contains 16 fluid Ounces of tasty carbonated beverage. It is important that the label and the can's contents agree at levels the federal government mandates for truth in labeling. The "gummint," as the townspeople call it, mandates that 16 ounce cans must contain at least 15.5 ounces and no more than 16.5 ounces to meet their standards. Gerry Ross is the production manager at Burpsy Cola. He is ultimately responsible for all aspects of manufacturing and packaging of the company's products. Today he is concerned about the can- filling line for one of their most popular products, Persimmon Soda. He has been sampling output from the Persimmon production line for several days, and the results are shown below: Observations (can volume in ounces) Sample Number 1 1 2 3 4 5 15.83 15.93 15.94 15.68 2 16.02 16.00 15.91 15.85 3 15.85 16.12 16.00 16.20 15.74 15.94 16.12 4 15.85 15.94 15.74 16.21 16.14 16.01 15.83 15.93 16.10 16.03 5 15.86 16.12 15.93 15.88 6 16.01
