Question: 2. Boolean Circuits. Consider a circuit that has three inputs (x,y, and z) and produces an output (f) of true (1) if and only if

2. Boolean Circuits. Consider a circuit that has three inputs (x,y,

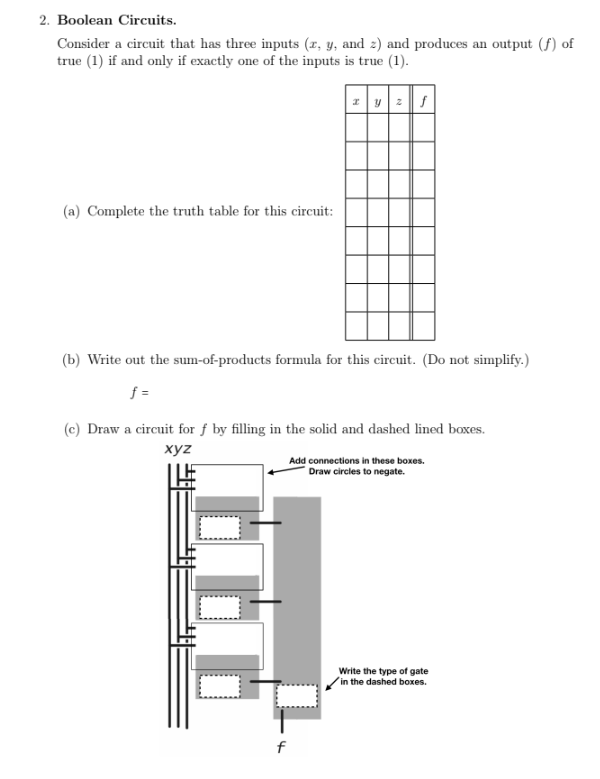

2. Boolean Circuits. Consider a circuit that has three inputs (x,y, and z) and produces an output (f) of true (1) if and only if exactly one of the inputs is true (1). (a) Complete the truth table for this circuit: (b) Write out the sum-of-products formula for this circuit. (Do not simplify.) f= (c) Draw a circuit for f by filling in the solid and dashed lined boxes

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
