Question: 2. Complete the truth table for the following sequential circuit. Assume the clock does not affect the final answer in any row. In other words,

2. Complete the truth table for the following sequential circuit. Assume

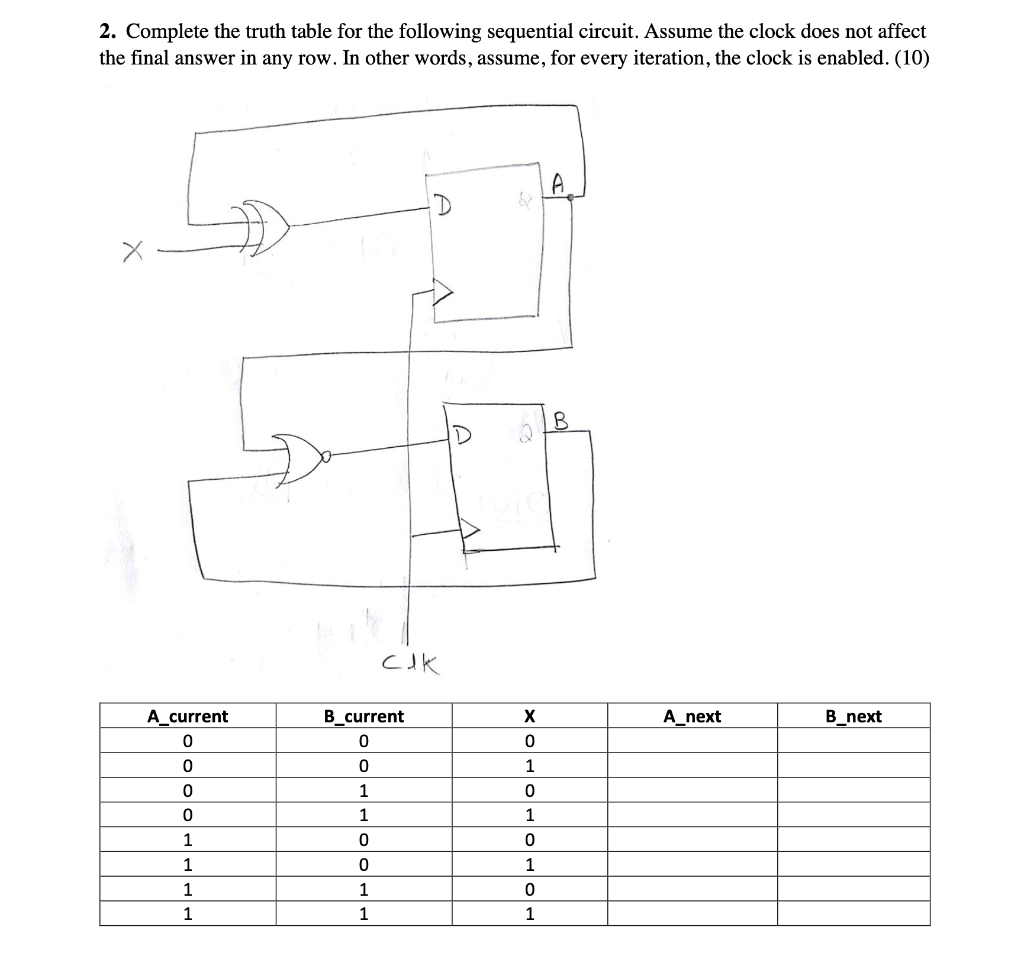

2. Complete the truth table for the following sequential circuit. Assume the clock does not affect the final answer in any row. In other words, assume, for every iteration, the clock is enabled. (10) A ID B clk A_current 0 0 B_current 0 0 A_next B_next 0 1 0 1 0 0 1 1 1 0 0 1 0 1 0 1 1 1 1 1

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
