Question: 2. Consider a multiplexor (a.k.a. MUX) that uses 8 one-bit inputs like below Out a. How many bits should be used for selector? b. If

2. Consider a multiplexor (a.k.a. MUX) that uses 8 one-bit inputs

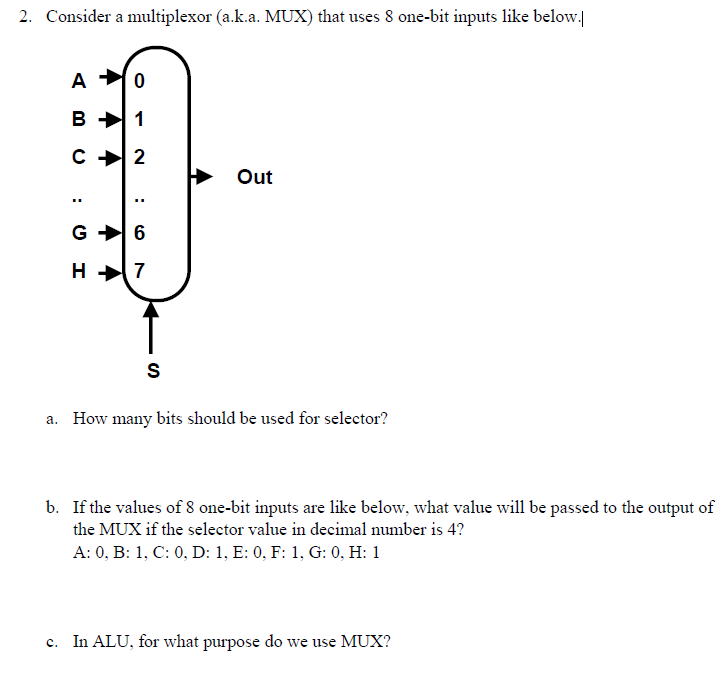

2. Consider a multiplexor (a.k.a. MUX) that uses 8 one-bit inputs like below Out a. How many bits should be used for selector? b. If the values of 8 one-bit inputs are like below, what value will be passed to the output of the MUX if the selector value in decimal number is 4? c. In ALU, for what purpose do we use MUX
