Question: 2. Consider the figure below, the current in the long straight wire I1 is 20 Amoeres and the current in the rectangular loop i2 is

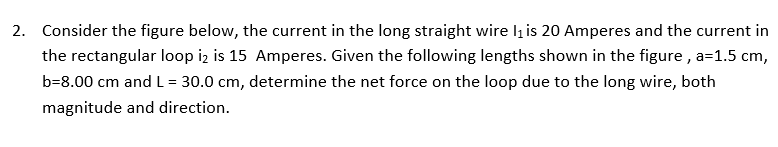

2. Consider the figure below, the current in the long straight wire I1 is 20 Amoeres and the current in the rectangular loop

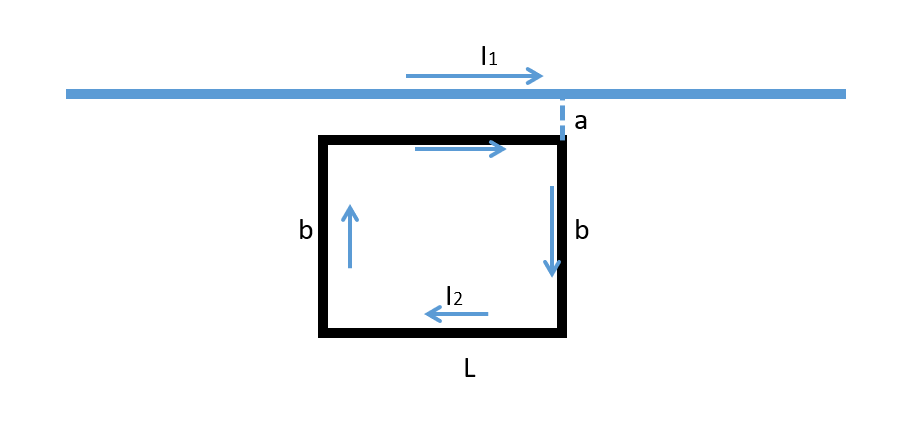

i2 is 15 Amperes. Given the following lengths shown in the figure

, 5121.5 cm, b=8.0[} cm and L = 30.0 cm, determine the

2. Consider the figure below, the current in the long straight wire I1 is 20 Amoeres and the current in the rectangular loop i2 is 15 Amperes. Given the following lengths shown in the figure , 5121.5 cm, b=8.0[} cm and L = 30.0 cm, determine the net force on the loop due to the long wire, both magnitude and direction.

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
