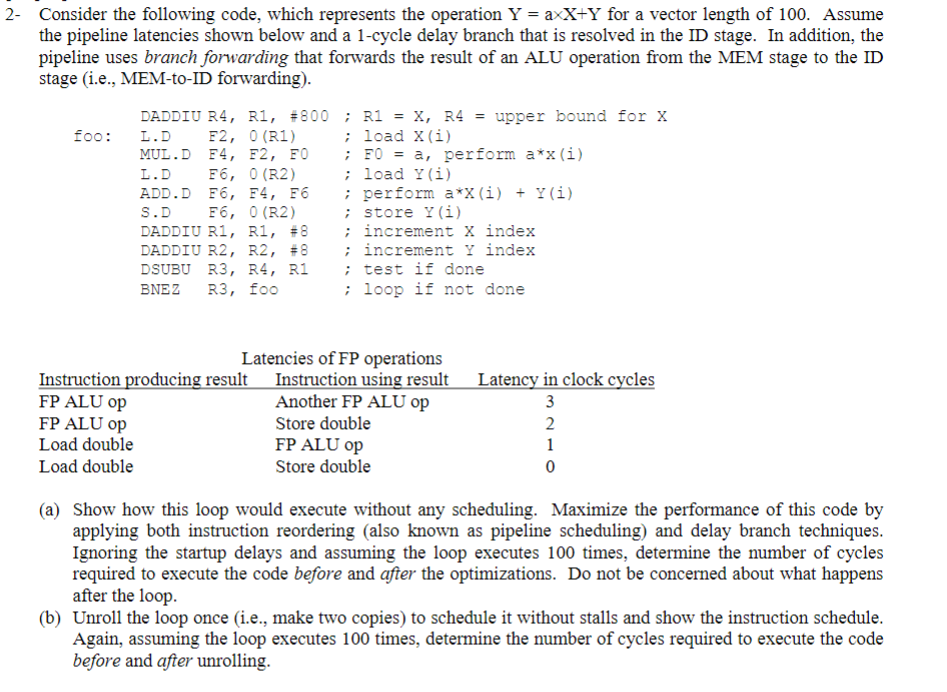

$2-$ Consider the following code, which represents the operation $Y=ax+Y$ for a vector length of $100.$ Assume

the pipeline latencies shown below and a $1-$cycle delay branch that is resolved in the ID stage. In addition, the

pipeline uses branch forwarding that forwards the result of an ALU operation from the MEM stage to the ID

stage $($i$.$e$.,$ MEM$-$to$-$ID forwarding$).$

Latencies of FP operations

$($a$)$ Show how this loop would execute without any scheduling. Maximize the performance of this code by

applying both instruction reordering $($also known as pipeline scheduling$)$ and delay branch techniques.

Ignoring the startup delays and assuming the loop executes $100$ times, determine the number of cycles

required to execute the code before and after the optimizations. Do not be concerned about what happens

after the loop.

$($b$)$ Unroll the loop once $($i$.$e$.,$ make two copies$)$ to schedule it without stalls and show the instruction schedule.

Again, assuming the loop executes $100$ times, determine the number of cycles required to execute the code

before and after unrolling.
